VND5E050MJTR-E footprint, schematic symbol and 3D model by STMicroelectronics

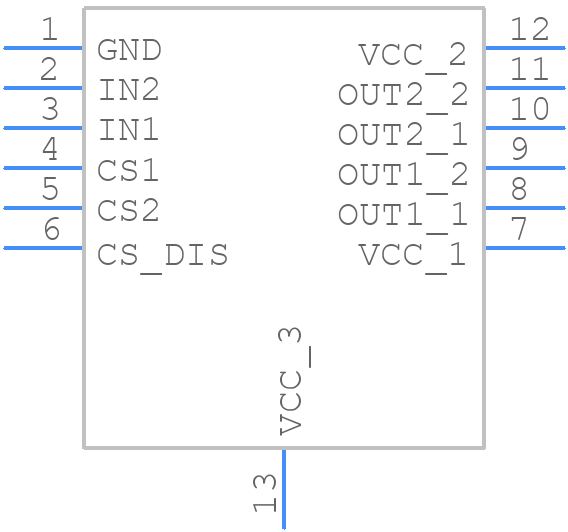

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VND5E050MJTR-E
Part Number VND5E050MJTR-E
Manufacturer STMicroelectronics
Pin Count 13
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSSO-12_
Released Date Apr 17, 2026
Last Modified Date Apr 17, 2026 11:49 AM UTC
Pinout / Pin List Click Here (Member Only)

VND5E050MJTR-E Details

Manufacturer Part Number:
VND5E050MJTR-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
SSOP
Package Description:
ROHS COMPLIANT, SSOP-12
Pin Count:
12
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
3
Built-in Protections:
TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
2
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G12
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
12
Output Current Flow Direction:
SOURCE
Output Current-Max:
2 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSSOP
Package Equivalence Code:
SOP12,.25,32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.62 mm
Supply Voltage-Max:
28 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
45 µs
Turn-on Time:
20 µs
Width:
3.9 mm

VND5E050MJTR-E Frequently Asked Questions (FAQs)

The maximum operating temperature range for the VND5E050MJTR-E is -40°C to 150°C.
To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device. Additionally, consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
STMicroelectronics provides a recommended PCB layout and land pattern for the VND5E050MJTR-E in the datasheet or in a separate application note. It's essential to follow these guidelines to ensure proper thermal dissipation, signal integrity, and to prevent electrical overstress.
The VND5E050MJTR-E is rated for a maximum voltage of 50V. While it can be used in high-voltage applications, it's crucial to ensure that the device is properly protected against overvoltage and electrical overstress. This may require additional circuitry, such as voltage regulators or transient voltage suppressors.
To troubleshoot issues with the VND5E050MJTR-E, start by reviewing the datasheet and application notes to ensure that the device is being used within its recommended operating conditions. Check for proper PCB layout, thermal management, and signal integrity. Use oscilloscopes or logic analyzers to debug the circuit, and consider consulting with STMicroelectronics' technical support or a qualified engineer.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VND5E050MJTR-E Overview

Use the download button to access the VND5E050MJTR-E schematic symbol and PCB footprint.
