VND5E050MK-E footprint, schematic symbol and 3D model by STMicroelectronics

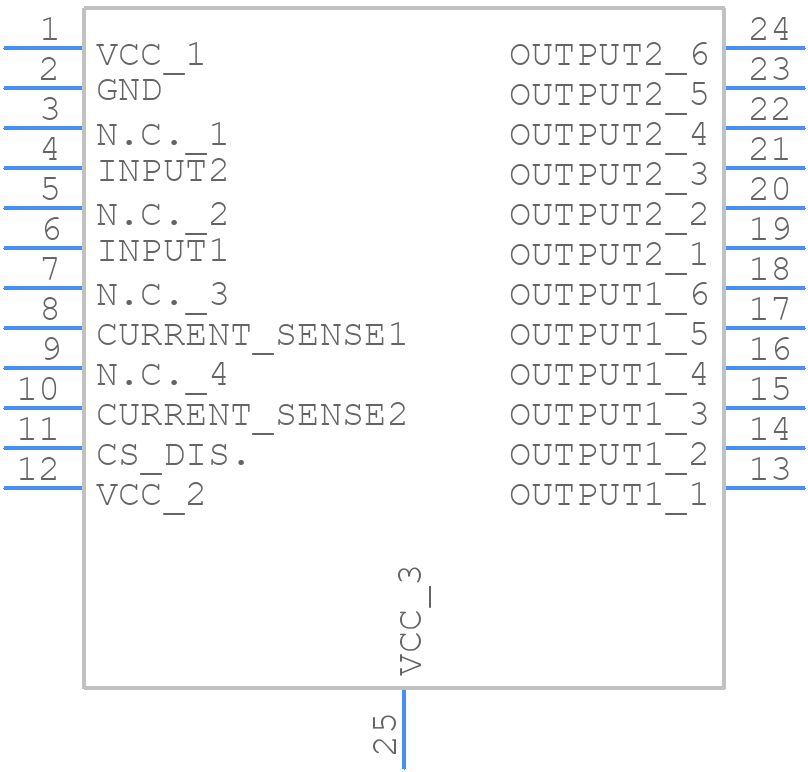

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VND5E050MK-E
Part Number VND5E050MK-E
Manufacturer STMicroelectronics
Pin Count 25
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSSO-24_2021
Released Date Apr 22, 2026
Last Modified Date Apr 22, 2026 11:33 AM UTC
Pinout / Pin List Click Here (Member Only)

VND5E050MK-E Details

Manufacturer Part Number:
VND5E050MK-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SSOP
Package Description:
ROHS COMPLIANT, SSOP-24
Pin Count:
24
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Built-in Protections:
TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
2
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G24
JESD-609 Code:
e3
Length:
10.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
24
Output Current Flow Direction:
SOURCE
Output Current-Max:
2 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SOP24,.4,32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.47 mm
Supply Voltage-Max:
28 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
45 µs
Turn-on Time:
20 µs
Width:
7.5 mm

VND5E050MK-E Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN4846, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, STMicroelectronics offers a dedicated tool, the STMicroelectronics Component Selector, to help engineers select the most suitable components for their specific application.
The VND5E050MK-E is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. It's essential to consult the datasheet and application notes for more information.
STMicroelectronics provides a troubleshooting guide in the application note AN4846, which covers common issues and their solutions. Additionally, engineers can consult the datasheet and contact STMicroelectronics' technical support for further assistance.
Yes, the VND5E050MK-E is compatible with lead-free soldering processes, and STMicroelectronics provides guidelines for lead-free soldering in the application note AN4846.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VND5E050MK-E Overview

Use the download button to access the VND5E050MK-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VND5E, or try a keyword search, such as Peripheral Drivers
