VND5E160J-E footprint, schematic symbol and 3D model by STMicroelectronics

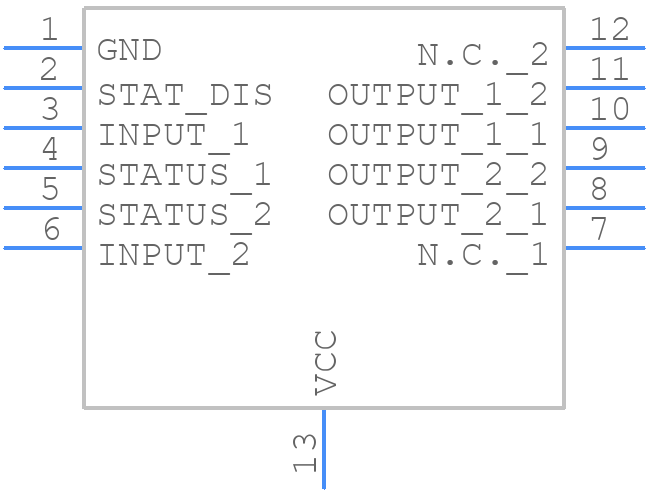

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VND5E160J-E
Part Number VND5E160J-E
Manufacturer STMicroelectronics
Pin Count 13
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSSO-12_2022
Released Date Apr 22, 2026
Last Modified Date Apr 22, 2026 11:27 AM UTC
Pinout / Pin List Click Here (Member Only)

VND5E160J-E Details

Manufacturer Part Number:
VND5E160J-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, SSO-12
Pin Count:
12
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Driver Number of Bits:
2
Interface IC Type:
HALF BRIDGE BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G12
JESD-609 Code:
e3
Moisture Sensitivity Level:
3
Number of Terminals:
12
Output Current Flow Direction:
SINK
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SOP12,.25,32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30

VND5E160J-E Frequently Asked Questions (FAQs)

The maximum operating temperature range for the VND5E160J-E is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
To ensure proper biasing, follow the recommended operating conditions and biasing schemes outlined in the datasheet. Typically, this involves connecting the input pins to a stable voltage source, and ensuring the output pins are properly terminated. Additionally, it's essential to follow proper PCB design and layout guidelines to minimize noise and interference.
For optimal performance, it's recommended to follow STMicroelectronics' guidelines for PCB layout and design. This includes keeping the device away from noise sources, using a solid ground plane, and minimizing track lengths and widths. Additionally, ensure proper decoupling and filtering of power supplies, and use a low-ESR capacitor for the output pin.
To troubleshoot issues with the VND5E160J-E, start by verifying the device is properly biased and the input pins are within the recommended operating range. Check for any signs of overheating, and ensure the device is properly cooled. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Yes, the VND5E160J-E is a sensitive device and requires proper ESD protection measures to prevent damage. Handle the device by the body or pins, avoid touching the pins or die, and use an ESD wrist strap or mat when handling the device. Ensure the workspace is ESD-safe, and follow proper packaging and storage guidelines to prevent damage during transportation and storage.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VND5E160J-E Overview

Use the download button to access the VND5E160J-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VND5E, or try a keyword search, such as Peripheral Drivers
