VND5E160JTR-E - STMicroelectronics

Description: Double channel high side driver for automotive applications

Download VND5E160JTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

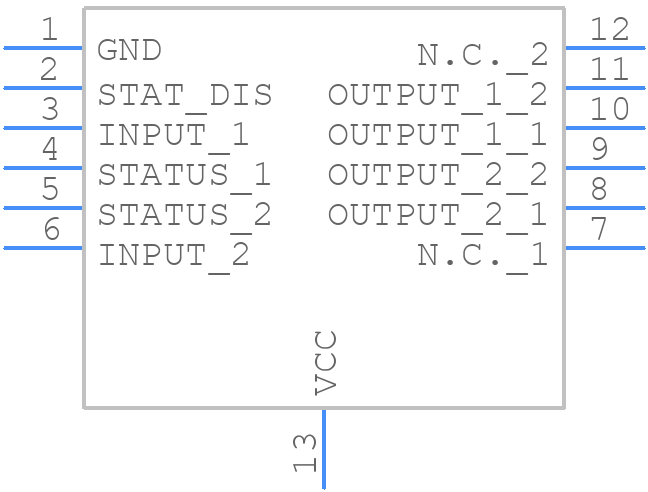

VND5E160JTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5E160JTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12 height 1.62
click to zoom
3D Models
VND5E160JTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12 height 1.62
click to zoom

VND5E160JTR-E Details

  • Manufacturer Part Number:

    VND5E160JTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SSO-12

  • Pin Count:

    12

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.12

  • Driver Number of Bits:

    2

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    12

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP12,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

VND5E160JTR-E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VND5E160JTR-E is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and minimizing power dissipation.
  • For minimal EMI, it's recommended to use a multi-layer PCB with a solid ground plane, keep the device as close to the PCB as possible, and use a shielded enclosure if necessary.
  • Yes, the VND5E160JTR-E is designed to handle high-voltage applications up to 160V. However, it's essential to ensure that the device is properly biased and that the maximum voltage ratings are not exceeded.
  • To troubleshoot issues, start by verifying the device's operating conditions, checking for proper power supply and biasing, and ensuring that the device is not overheating. If issues persist, consult the datasheet and application notes or contact STMicroelectronics support.
