VND5T035AK-E - STMicroelectronics

Description: IC PWR DRVR N-CHAN 1:1 PWRSSO24

Download VND5T035AK-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

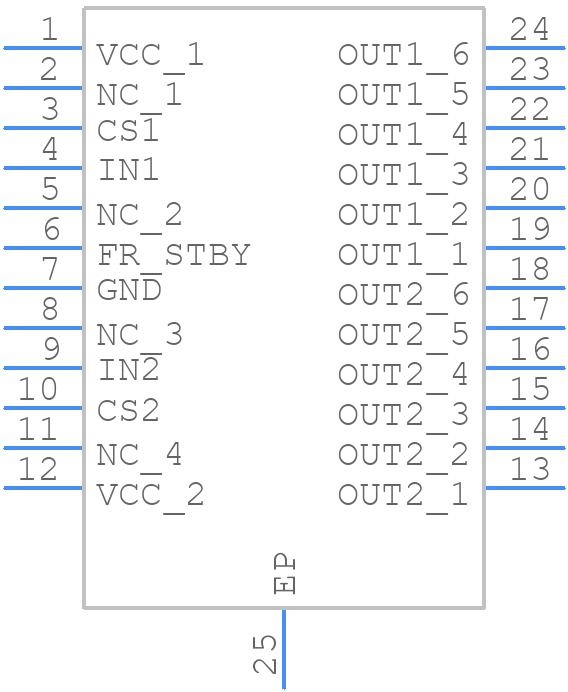

Symbol
VND5T035AK-E - STMicroelectronics - PCB symbol
click to zoom

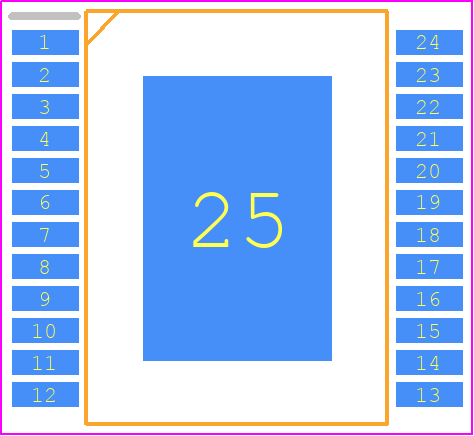

PCB Footprints
VND5T035AK-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24_2024
click to zoom
3D Models
VND5T035AK-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24_2024
click to zoom

VND5T035AK-E Details

  • Manufacturer Part Number:

    VND5T035AK-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    42 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VND5T035AK-E Frequently Asked Questions (FAQs)

  • A good PCB layout for the VND5T035AK-E involves keeping the input and output tracks as short as possible, using a ground plane to reduce EMI, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The VND5T035AK-E requires a stable power supply with minimal noise and ripple. Use a high-quality voltage regulator and decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the device.
  • The VND5T035AK-E is rated for operation from -40°C to 150°C (junction temperature). However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
  • The VND5T035AK-E is an automotive-grade device, but it's essential to evaluate its suitability for high-reliability or safety-critical applications on a case-by-case basis. Consult with STMicroelectronics and perform thorough testing and validation to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the VND5T035AK-E, start by verifying the power supply and decoupling, then check the PCB layout and signal integrity. Use oscilloscopes and logic analyzers to debug the device's behavior. Consult the datasheet and application notes, and contact STMicroelectronics' support if necessary.
