VND5T035LAK-E - STMicroelectronics

Description: Power Switch/Driver 1:1 N-Channel 30A PowerSSO-24™ On/Off 4V ~ 36V 35mOhm Surface Mount -40°C ~ 150°C (TJ)

Download VND5T035LAK-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

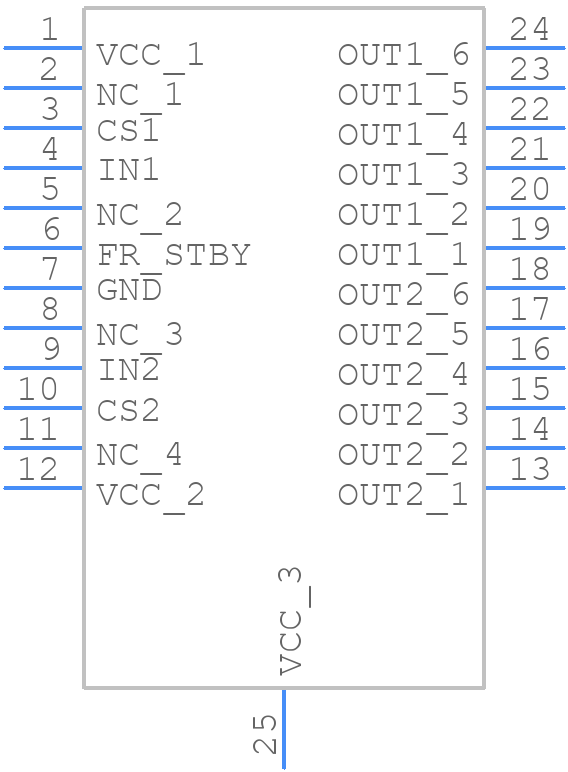

VND5T035LAK-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

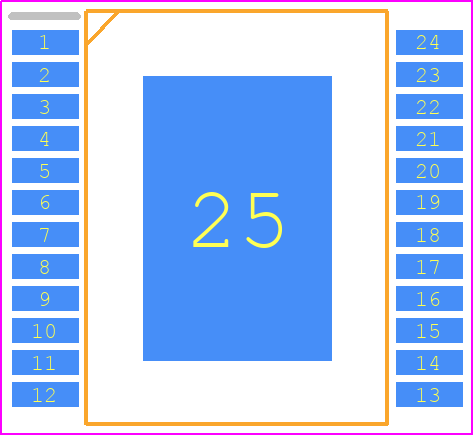

VND5T035LAK-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24_2025
click to zoom
3D Models
VND5T035LAK-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24_2025
click to zoom

VND5T035LAK-E Details

  • Manufacturer Part Number:

    VND5T035LAK-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PowerSSO-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE; TRANSIENT

  • Driver Number of Bits:

    2

  • Input Characteristics:

    GATED

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    10.3 mm

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-SOURCE

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    54 µs

  • Turn-on Time:

    46 µs

  • Width:

    7.5 mm

VND5T035LAK-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • Follow the recommended soldering and reflow profile guidelines provided in the STMicroelectronics soldering guide, which includes temperature and time profiles to ensure reliable assembly and minimize defects.
  • The VND5T035LAK-E has a thermal pad that must be connected to a thermal ground plane or heat sink to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity. Additionally, ensure good airflow and avoid blocking airflow around the device.
  • Use a systematic approach to troubleshoot issues, starting with checking the power supply, signal integrity, and PCB layout. Consult the datasheet and application notes for guidance on troubleshooting common issues. If issues persist, contact STMicroelectronics support for further assistance.
  • Yes, the VND5T035LAK-E is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, and ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to prevent damage during assembly and operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5T035LAK-E Overview

Use the download button to access the VND5T035LAK-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5T, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
