VND5T050AKTR-E - STMicroelectronics

Description: Double channel high-side driver with analog current sense for 24 V automotive applications

Download VND5T050AKTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

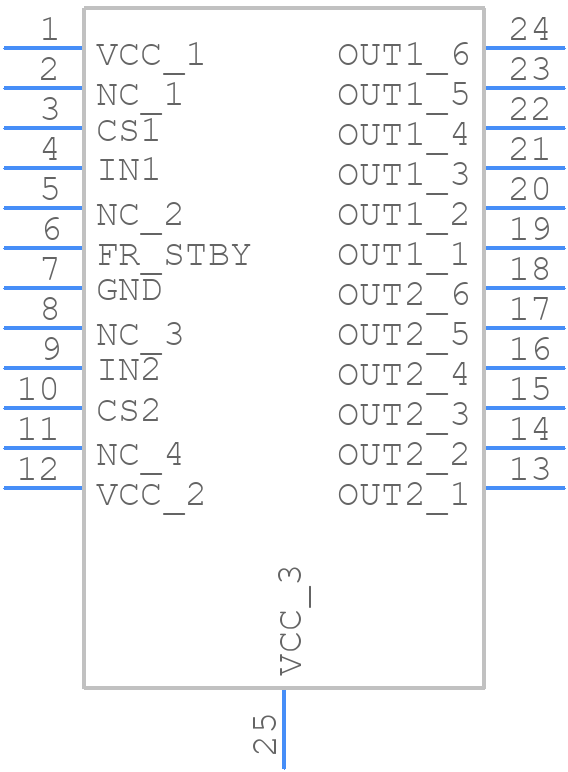

Symbol
VND5T050AKTR-E - STMicroelectronics - PCB symbol
click to zoom

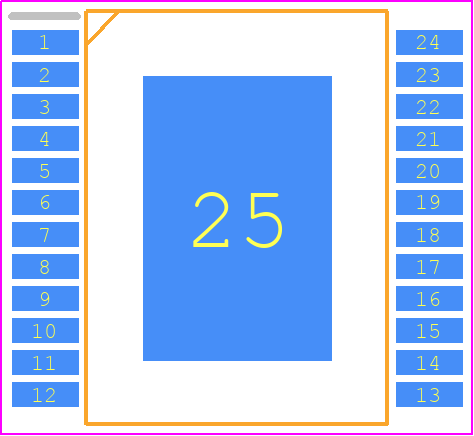

PCB Footprints
VND5T050AKTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24_2022_1
click to zoom
3D Models
VND5T050AKTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24_2022_1
click to zoom

VND5T050AKTR-E Details

  • Manufacturer Part Number:

    VND5T050AKTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.15

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    34 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VND5T050AKTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • Follow the recommended soldering profile and thermal management guidelines provided in the datasheet and application notes. Ensure the PCB is designed with adequate thermal relief and the component is properly aligned during the reflow process.
  • The VND5T050AKTR-E has built-in ESD protection and latch-up prevention mechanisms. However, it's still recommended to follow proper ESD handling and storage procedures, and to design the PCB with adequate ESD protection and latch-up prevention measures.
  • The VND5T050AKTR-E is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for specific guidance on operating temperature ranges and limitations.
  • Use a combination of oscilloscope measurements, logic analyzer traces, and debugging tools provided by STMicroelectronics to identify and isolate issues. Consult the datasheet, application notes, and STMicroelectronics' support resources for guidance on troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5T050AKTR-E Overview

Use the download button to access the VND5T050AKTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5T, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
