VND5T100LASTR-E - STMicroelectronics

Description: Double channel high-side driver with analog current sense for 24 V automotive applications

Download VND5T100LASTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

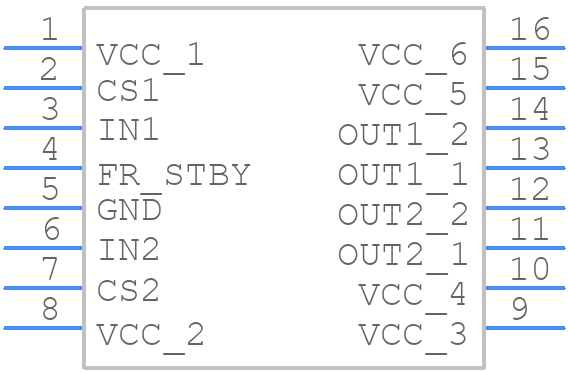

Symbol
VND5T100LASTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5T100LASTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16N
click to zoom
3D Models
VND5T100LASTR-E - STMicroelectronics - 3D model - Small Outline Packages - SO16N
click to zoom

VND5T100LASTR-E Details

  • Manufacturer Part Number:

    VND5T100LASTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SO-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-SOURCE

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    22 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    38 µs

  • Turn-on Time:

    27 µs

  • Width:

    3.9 mm

VND5T100LASTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4846, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • To ensure reliability in high-temperature applications, it is essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within the recommended temperature range.
  • The maximum allowable voltage drop across the VND5T100LASTR-E is dependent on the specific application and operating conditions. As a general guideline, the voltage drop should be limited to 1.5 V to ensure reliable operation. However, it is recommended to consult the datasheet and application notes for specific guidance on voltage drop and power dissipation.
  • Yes, the VND5T100LASTR-E is suitable for high-frequency switching applications up to 100 kHz. However, it is essential to consider the device's switching characteristics, including rise and fall times, and ensure that the application's switching frequency is within the recommended range.
  • To protect the VND5T100LASTR-E from ESD, follow proper handling and storage procedures, including using anti-static wrist straps, mats, and packaging materials. Additionally, consider implementing ESD protection circuits and devices in the application to prevent ESD events from damaging the device.
