VND7020AJTR - STMicroelectronics

Description: Gate Drivers Double channel high-side driver with MultiSense analog feedback for automotive applications

Download VND7020AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

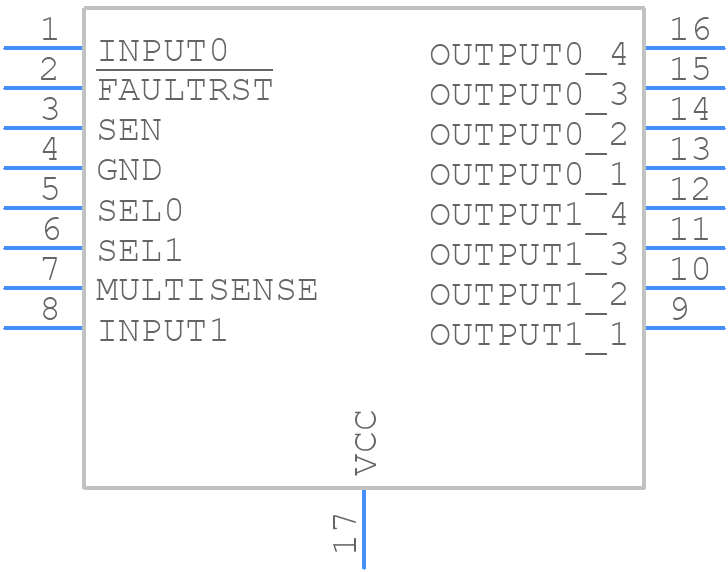

Symbol
VND7020AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND7020AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16
click to zoom
3D Models
VND7020AJTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16
click to zoom

VND7020AJTR Details

  • Manufacturer Part Number:

    VND7020AJTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    120 µs

  • Width:

    3.9 mm

VND7020AJTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the VND7020AJTR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper cooling, make sure the VND7020AJTR is mounted on a heat sink with a thermal resistance of less than 10°C/W. Also, ensure good airflow around the device and avoid blocking the airflow with other components or obstacles.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage can damage the device. It's recommended to use a voltage regulator to ensure the voltage remains within the specified range.
  • To troubleshoot issues with the VND7020AJTR, start by checking the power supply voltage, ensuring it's within the specified range. Then, check the input and output signals using an oscilloscope to identify any anomalies. If the issue persists, consult the datasheet and application notes for guidance.
  • The VND7020AJTR is rated for operation up to 150°C. However, it's recommended to derate the device's performance at high temperatures to ensure reliability. Consult the datasheet for thermal derating guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND7020AJTR Overview

Use the download button to access the VND7020AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND70, or try a keyword search, such as Peripheral Drivers
