VND7050AJ12TR - STMicroelectronics

Description: Double channel high-side driver with CurrentSense analog feedback for automotive applications

Download VND7050AJ12TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

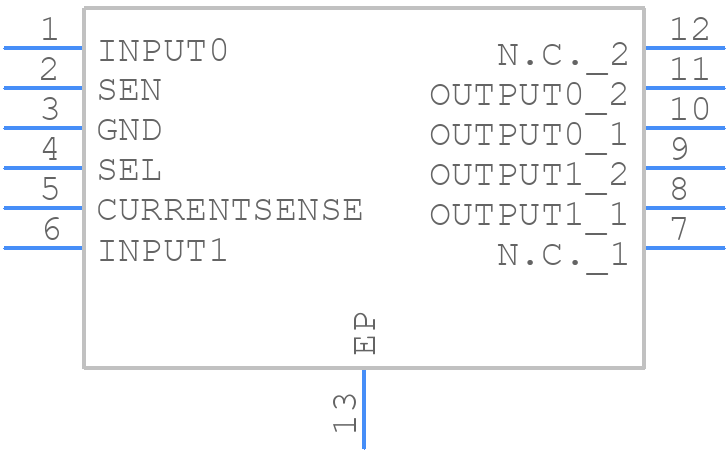

VND7050AJ12TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND7050AJ12TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12 height 1.7
click to zoom
3D Models
VND7050AJ12TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12 height 1.7
click to zoom

VND7050AJ12TR Details

  • Manufacturer Part Number:

    VND7050AJ12TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VND7050AJ12TR Frequently Asked Questions (FAQs)

  • The maximum current rating of the VND7050AJ12TR is 15A, but it's recommended to derate the current to 12A for reliable operation.
  • To ensure proper cooling, make sure to attach a heat sink to the device, and ensure good airflow around the device. The thermal resistance of the device is 2.5°C/W, so a heat sink with a thermal resistance of 5°C/W or lower is recommended.
  • The recommended PCB layout for the VND7050AJ12TR involves placing the device near the power source, using wide traces for power and ground, and minimizing the length of the traces to reduce inductance and resistance.
  • To protect the VND7050AJ12TR from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to regulate the input voltage, and consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits.
  • The recommended input capacitor value for the VND7050AJ12TR is 10uF to 22uF, with a voltage rating of 25V or higher, and an ESR of 10mΩ or lower.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND7050AJ12TR Overview

Use the download button to access the VND7050AJ12TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND70, or try a keyword search, such as Peripheral Drivers
