VND7E025AJTR - STMicroelectronics

Description: Double channel high-side driver with CurrentSense analog feedback for automotive applications

Download VND7E025AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

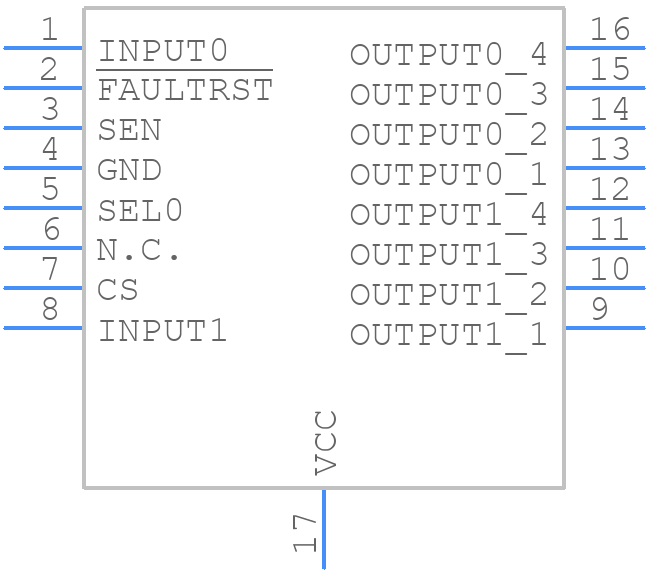

VND7E025AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND7E025AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16(H=1.7mm)
click to zoom
3D Models
VND7E025AJTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16(H=1.7mm)
click to zoom

VND7E025AJTR Details

  • Manufacturer Part Number:

    VND7E025AJTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2018-11-20

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.15

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP16,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    120 µs

  • Width:

    3.9 mm

VND7E025AJTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, STMicroelectronics provides a component selection guide in the application note AN4841, which helps engineers choose the right components for their specific application.
  • The VND7E025AJTR has a high power density, and proper thermal management is crucial to ensure reliability and prevent overheating. Engineers should follow the thermal management guidelines in the datasheet and application note AN4841, including the use of thermal pads, heat sinks, and thermal interfaces.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4841, which covers common issues and their solutions. Engineers can also refer to the datasheet and STMicroelectronics' technical support resources for additional guidance.
  • Yes, the VND7E025AJTR is a high-frequency device, and EMI and EMC considerations are crucial to ensure compliance with regulatory standards. Engineers should follow the EMI and EMC guidelines in the datasheet and application note AN4841, including the use of shielding, filtering, and grounding techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND7E025AJTR Overview

Use the download button to access the VND7E025AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND7E, or try a keyword search, such as Peripheral Drivers
