VND830AEP-E - STMicroelectronics

Description: VND830AEP-E, Motor Driver, 5.5 → 36 V, 24-Pin PowerSSO EP

Download VND830AEP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

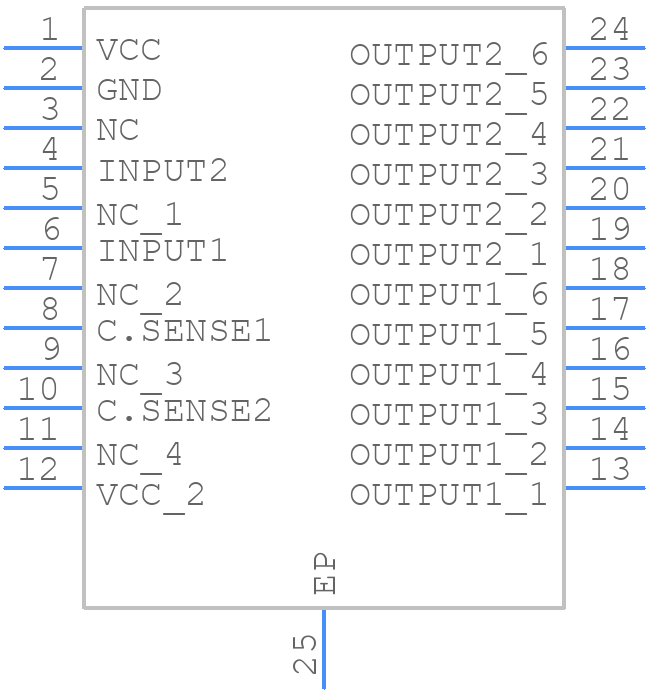

Symbol
VND830AEP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND830AEP-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST PowerSSO-24
click to zoom
3D Models
VND830AEP-E - STMicroelectronics - 3D model - Small Outline Packages - ST PowerSSO-24
click to zoom

VND830AEP-E Details

  • Manufacturer Part Number:

    VND830AEP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

VND830AEP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The sense resistor value depends on the maximum current and voltage of your application. STMicroelectronics provides a calculation formula in the datasheet to determine the sense resistor value. Additionally, you can use the online calculator tool provided by STMicroelectronics to simplify the calculation.
  • The maximum junction temperature (Tj) of the VND830AEP-E is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the VND830AEP-E is qualified for operation up to 125°C ambient temperature. However, you should ensure that the device is properly cooled and the junction temperature is kept below the maximum rating. You may need to use a heat sink or other cooling measures to achieve this.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which includes a step-by-step procedure to identify and resolve common issues. Additionally, you can use the device's built-in diagnostic features, such as the fault flag output, to help identify the cause of the issue.
