VND830ASPTR-E - STMicroelectronics

Description: Double channel high-side solid state relay, 60 mΩ, 6 A, 36 V -40°C to 150 °C

Download VND830ASPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

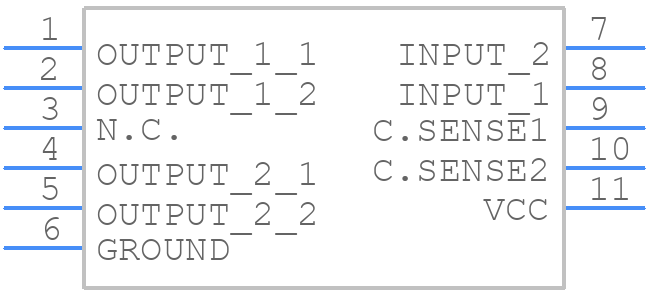

VND830ASPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND830ASPTR-E - STMicroelectronics PCB footprint - Other - Other - PowerSO-10_2026-1.5
click to zoom

VND830ASPTR-E Details

  • Manufacturer Part Number:

    VND830ASPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

VND830ASPTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The VND830ASPTR-E has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured to enter a low-power state by setting the STBY pin high. Refer to the datasheet for specific timing and voltage requirements.
  • The VND830ASPTR-E is rated for operation from -40°C to 150°C (junction temperature). However, the device can be operated at temperatures above 150°C for short periods of time, but this may affect its reliability and lifespan.
  • Yes, the VND830ASPTR-E is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mounting system to minimize the impact of vibrations on the device.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5323, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and logic analyzers to debug the device and identify potential issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND830ASPTR-E Overview

Use the download button to access the VND830ASPTR-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VND83, or try a keyword search, such as Peripheral Drivers
