VND830MSP - STMicroelectronics

Description: Power Switch/Driver 1:1 N-Channel 6A 10-PowerSO , Surface Mount , 6 A , 60mOhm (Max) , 5.5V ~ 36V , -40°C ~ 150°C (TJ)

Download VND830MSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

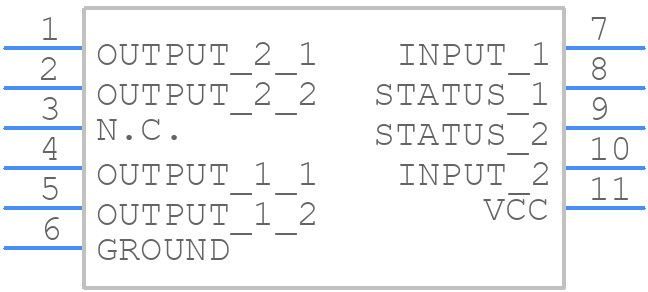

VND830MSP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND830MSP - STMicroelectronics PCB footprint - Other - Other - PowerSO-10_2026-8.5
click to zoom

VND830MSP Details

  • Manufacturer Part Number:

    VND830MSP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.5 A

  • Output Peak Current Limit-Nom:

    9 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    70 µs

  • Turn-on Time:

    60 µs

  • Width:

    7.5 mm

VND830MSP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The VND830MSP has a programmable output current range, which can be set using the ISET pin. The datasheet provides a table with recommended ISET resistor values for different output current ranges. Additionally, the application note AN4979 provides more detailed information on how to calculate the ISET resistor value for custom output current ranges.
  • The VND830MSP has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating and ensure reliable operation.
  • The VND830MSP has a maximum input voltage rating of 42V, but it can be used in high-voltage applications with proper protection and design considerations. STMicroelectronics recommends using a voltage regulator or a voltage limiter to prevent overvoltage conditions and ensure safe operation.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which covers common issues and their possible causes. Additionally, the datasheet provides a list of possible faults and their corresponding fault flags, which can help identify the root cause of the issue.
