VND830SPTR-E - STMicroelectronics

Description: DOUBLE CHANNEL HIGH SIDE DRIVER

Download VND830SPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

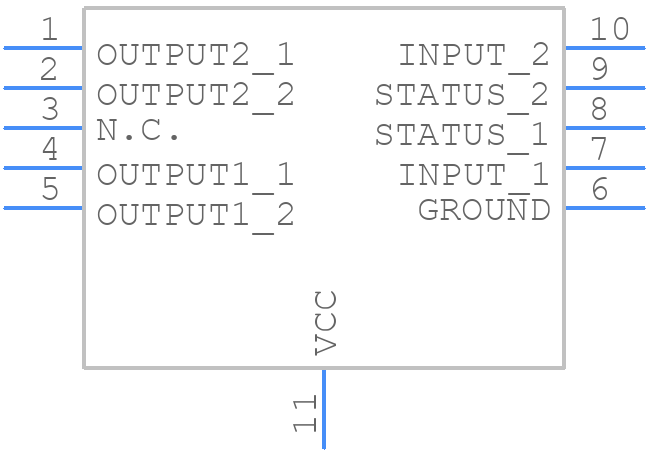

VND830SPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND830SPTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-10_1_2022
click to zoom
3D Models
VND830SPTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-10_1_2022
click to zoom

VND830SPTR-E Details

  • Manufacturer Part Number:

    VND830SPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-10

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    3.75 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

VND830SPTR-E Frequently Asked Questions (FAQs)

  • A good PCB layout for the VND830SPTR-E involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The VND830SPTR-E requires a stable power supply with a voltage range of 3.3V to 5V. A decoupling capacitor of 100nF to 1uF should be placed close to the device, and a larger capacitor (10uF to 100uF) should be placed near the power supply. Additionally, a 10kΩ to 100kΩ pull-up resistor should be used on the enable pin.
  • The maximum current rating of the VND830SPTR-E is 1.5A per channel, with a total current rating of 3A for both channels. However, the actual current rating may vary depending on the application and operating conditions.
  • The VND830SPTR-E has built-in overvoltage protection (OVP) and overcurrent protection (OCP). However, additional protection can be achieved by using external components such as TVS diodes, zener diodes, or fuses. It is also recommended to use a voltage regulator to regulate the input voltage.
  • The VND830SPTR-E has a thermal pad that should be connected to a solid ground plane to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Additionally, a heat sink or a thermal shield can be used to further improve thermal management.
