VND9025AJTR - STMicroelectronics

Description: Double channel high-side driver with current sense analog feedback for automotive applications

Download VND9025AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

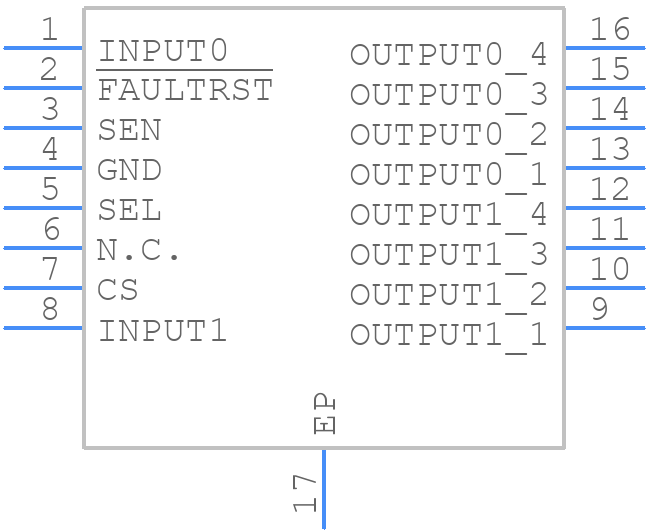

VND9025AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND9025AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16-+++
click to zoom
3D Models
VND9025AJTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16-+++
click to zoom

VND9025AJTR Details

  • Manufacturer Part Number:

    VND9025AJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed
