VND92013TR - STMicroelectronics

Description: Double channel high-side solid-state relay

Download VND92013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

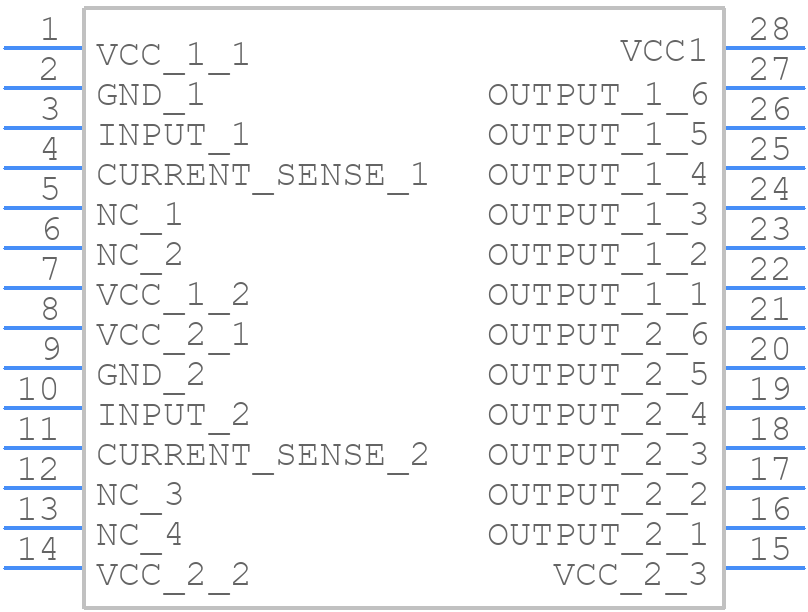

VND92013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND92013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-28..
click to zoom

VND92013TR Details

  • Manufacturer Part Number:

    VND92013TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SO-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.005 A

  • Output Peak Current Limit-Nom:

    45 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VND92013TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The datasheet provides a list of recommended external components, including resistors, capacitors, and inductors. Additionally, STMicroelectronics offers a dedicated tool, the STMicroelectronics Component Selector, to help engineers select the most suitable components for their specific application.
  • The VND92013TR is rated for operation from -40°C to 150°C, but the maximum operating temperature range depends on the specific application and the thermal management system implemented. Engineers should consult the datasheet and application notes for more information on thermal management and derating.
  • The VND92013TR has a built-in overcurrent protection feature, which can be enabled by connecting the OCP pin to a suitable resistor and capacitor network. The application note AN4899 provides more information on how to implement overcurrent protection and adjust the threshold to suit specific application requirements.
  • The recommended power-up sequence is to apply the supply voltage (VIN) first, followed by the enable signal (EN). This ensures proper initialization and prevents unwanted behavior. The datasheet provides more information on the power-up sequence and timing requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND92013TR Overview

Use the download button to access the VND92013TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VND92, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
