VNH5200AS-E - STMicroelectronics

Description: Automotive fully integrated H-bridge motor driver

Download VNH5200AS-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

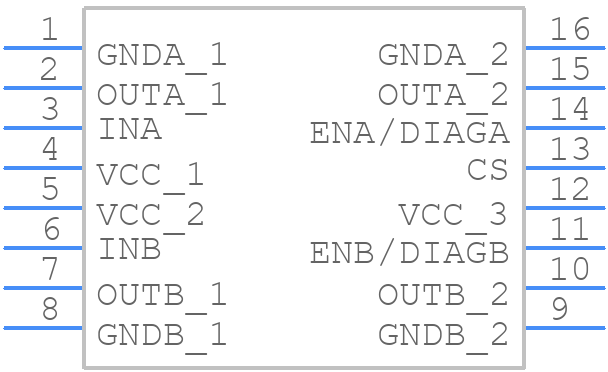

VNH5200AS-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNH5200AS-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 Narrow_1
click to zoom
3D Models
VNH5200AS-E - STMicroelectronics - 3D model - Small Outline Packages - SO16 Narrow_1
click to zoom

VNH5200AS-E Details

  • Manufacturer Part Number:

    VNH5200AS-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

VNH5200AS-E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VNH5200AS-E is -40°C to 140°C, but it's recommended to operate within -20°C to 125°C for optimal performance and reliability.
  • The VNH5200AS-E has built-in overvoltage and undervoltage protection, but it's still recommended to add external protection circuits, such as TVS diodes and voltage regulators, to ensure the device operates within its specified voltage range.
  • The maximum current rating for the VNH5200AS-E is 30A, but it's recommended to derate the current based on the operating temperature and PCB design to ensure reliable operation.
  • The VNH5200AS-E has a built-in thermal shutdown feature that turns off the device when it reaches a junction temperature of 170°C. However, it's recommended to implement external thermal protection measures, such as thermal sensors and cooling systems, to prevent overheating.
  • The recommended PCB layout and design considerations for the VNH5200AS-E include using a 4-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and using wide traces for high-current paths. It's also recommended to follow the layout guidelines provided in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNH5200AS-E Overview

Use the download button to access the VNH5200AS-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNH52, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
