Part Image

VNI8200XP-32 - STMicroelectronics

Description: Octal high-side smart power solid-state relay with serial/parallel selectable interface on-chip

Download VNI8200XP-32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

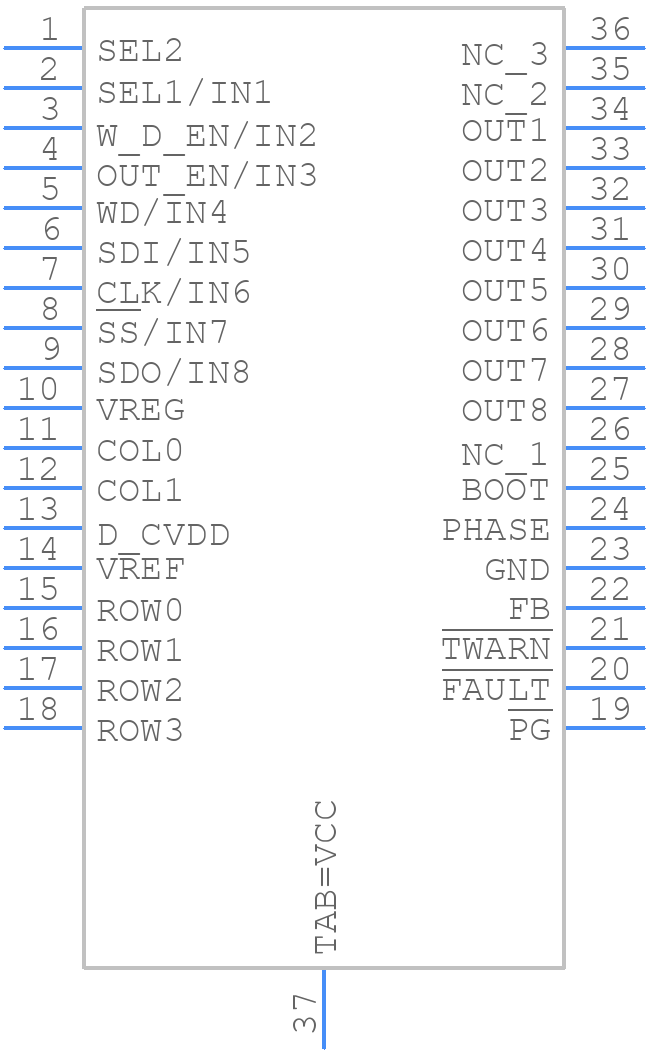

Symbol
VNI8200XP-32 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNI8200XP-32 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36-1
click to zoom
3D Models
VNI8200XP-32 - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36-1
click to zoom

VNI8200XP-32 Details

  • Manufacturer Part Number:

    VNI8200XP-32

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

VNI8200XP-32 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the VNI8200XP-32 is 3.3V to 5.5V, with a typical voltage of 3.3V.
  • To configure the VNI8200XP-32 for low-power mode, set the EN pin low and the STBY pin high. This will reduce the power consumption to a minimum.
  • The maximum current rating for the VNI8200XP-32 is 1.5A per channel, with a total current limit of 3A for all channels combined.
  • To diagnose faults on the VNI8200XP-32, monitor the FLT pin, which is an open-drain output that indicates a fault condition. You can also use the SPI interface to read the fault status register.
  • Yes, the VNI8200XP-32 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, ensure that the device is properly heat-sinked to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNI8200XP-32 Overview

Use the download button to access the VNI8200XP-32 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNI82, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
