VNL5030J-E - STMicroelectronics

Description: OMNIFET III fully protected low-side driver

Download VNL5030J-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

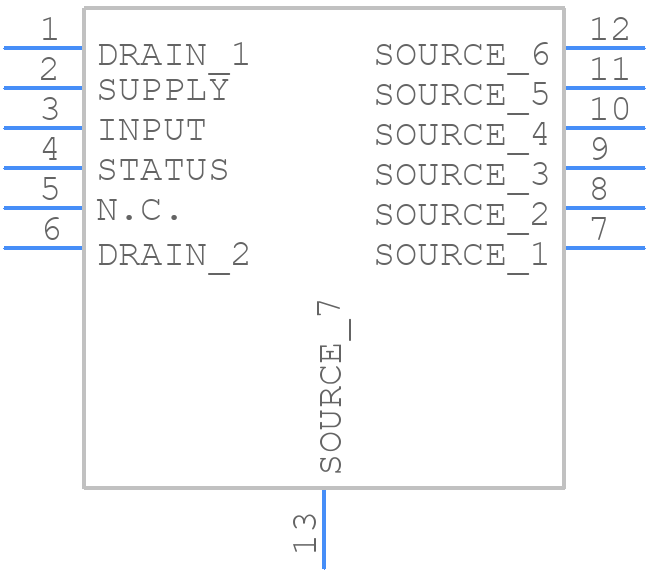

VNL5030J-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNL5030J-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12
click to zoom

VNL5030J-E Details

  • Manufacturer Part Number:

    VNL5030J-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SOP12,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.62 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    18.8 µs

  • Turn-on Time:

    7.6 µs

  • Width:

    3.9 mm

VNL5030J-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4101, which includes guidelines for component placement, routing, and thermal management.
  • The VNL5030J-E requires a specific power-up sequence, which is described in the datasheet. Additionally, the device requires a 10kΩ pull-up resistor on the EN pin to ensure proper initialization.
  • The maximum current rating for the VNL5030J-E is 1.5A, but this can be limited by the PCB design and thermal management. It's essential to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • The VNL5030J-E is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the thermal design guidelines and consider derating the device's performance at high temperatures.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4101, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and logic analyzers to debug the device's behavior.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNL5030J-E Overview

Use the download button to access the VNL5030J-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VNL50, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
