Part Image

VNL5030S5TR-E - STMicroelectronics

Description: OMNIFET III: fully protected low-side driver

Download VNL5030S5TR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

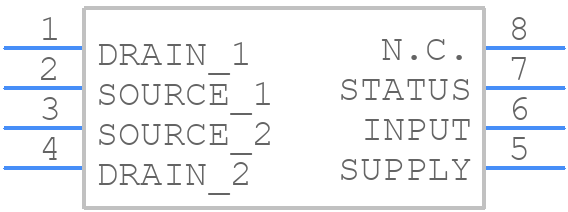

Symbol
VNL5030S5TR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNL5030S5TR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-08-2024
click to zoom
3D Models
VNL5030S5TR-E - STMicroelectronics - 3D model - Small Outline Packages - SO-08-2024
click to zoom

VNL5030S5TR-E Details

  • Manufacturer Part Number:

    VNL5030S5TR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    18.8 µs

  • Turn-on Time:

    7.6 µs

  • Width:

    3.9 mm

VNL5030S5TR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the device. The device should be placed close to the power source, and the input and output tracks should be kept short and wide to minimize inductance.
  • The VNL5030S5TR-E has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, the device should be placed in a well-ventilated area to ensure adequate airflow.
  • STMicroelectronics recommends a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 25V or higher. The capacitor should be placed as close as possible to the VIN pin of the device.
  • The VNL5030S5TR-E has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using a voltage supervisor or a power-on reset (POR) circuit to monitor the input voltage and reset the device if it falls outside the recommended operating range.
  • STMicroelectronics recommends a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 2.5V or higher. The capacitor should be placed as close as possible to the VOUT pin of the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNL5030S5TR-E Overview

Use the download button to access the VNL5030S5TR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNL50, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
