VNL5300S5-E - STMicroelectronics

Description: STMICROELECTRONICS - VNL5300S5-E - MOSFET DRIVER, LOW SIDE, SOIC-8

Download VNL5300S5-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

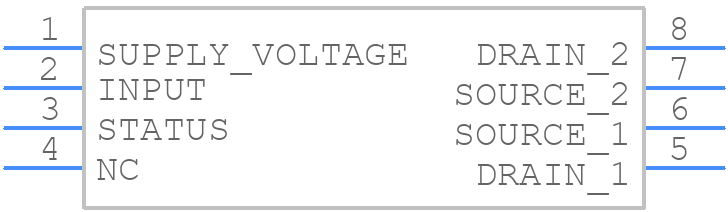

VNL5300S5-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNL5300S5-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - so8
click to zoom
3D Models
VNL5300S5-E - STMicroelectronics - 3D model - Small Outline Packages - so8
click to zoom

VNL5300S5-E Details

  • Manufacturer Part Number:

    VNL5300S5-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

VNL5300S5-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management.
  • The VNL5300S5-E requires a specific power-up sequence and configuration. Refer to the application note AN5323 and the datasheet for detailed information on power-up and configuration procedures.
  • The VNL5300S5-E has a high power dissipation, so thermal management is crucial. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with thermal vias.
  • Use the debugging tools and techniques described in the application note AN5323, such as monitoring the device's status registers and using an oscilloscope to analyze the signals.
  • The VNL5300S5-E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and handling to prevent damage.
