VNQ500PEPTR-E - STMicroelectronics

Description: Quad channel high-side driver

Download VNQ500PEPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

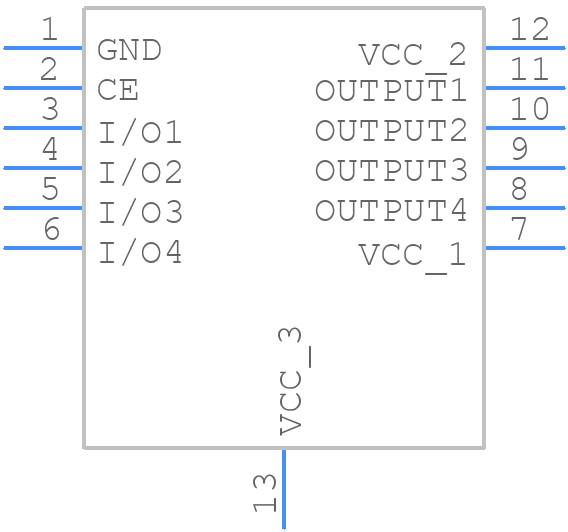

Symbol
VNQ500PEPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ500PEPTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12 -1
click to zoom
3D Models
VNQ500PEPTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12 -1
click to zoom

VNQ500PEPTR-E Details

  • Manufacturer Part Number:

    VNQ500PEPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SSO-12

  • Pin Count:

    12

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.05

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    12

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SOP12,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.62 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

VNQ500PEPTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • STMicroelectronics provides a configuration tool, VNQ500PEPTR-E Configurator, which allows users to customize the device's settings, such as output voltage, current limit, and fault detection, to suit their specific application requirements.
  • The VNQ500PEPTR-E has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance and prevent overheating.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which covers common issues, such as output voltage deviations, current limit faults, and thermal shutdowns, and provides guidance on how to identify and resolve these issues.
  • Yes, the VNQ500PEPTR-E is a high-frequency device, and EMI/EMC considerations are crucial. Ensure proper shielding, use a common-mode choke, and follow the recommended PCB layout to minimize electromagnetic interference and ensure compliance with relevant standards.
