VNQ5050AK-E - STMicroelectronics

Description: VNQ5050AK-E, Motor Driver,, 24-Pin PowerSSO EP

Download VNQ5050AK-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

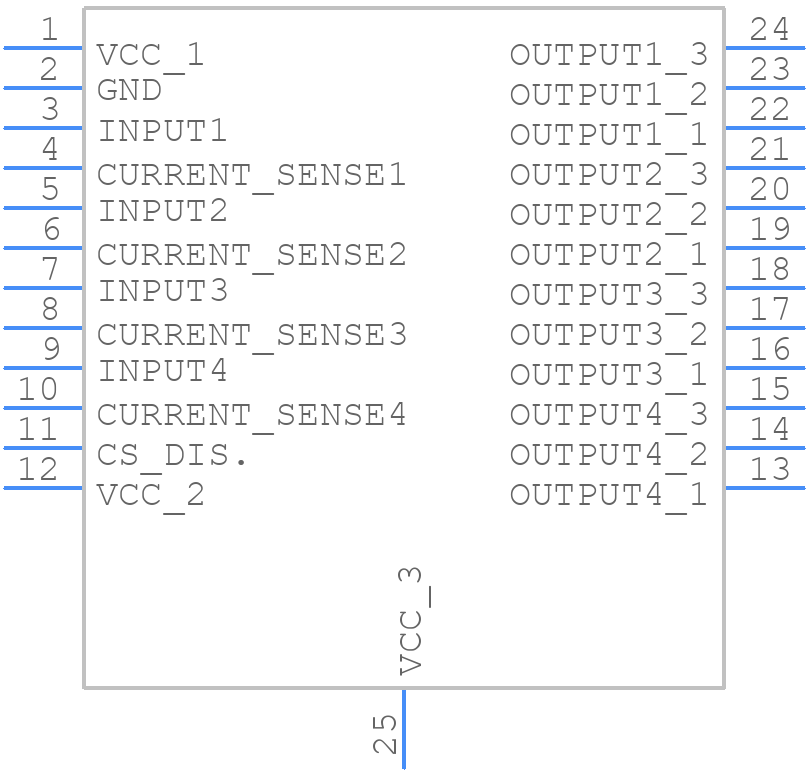

VNQ5050AK-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ5050AK-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - VNQ5050AK-E
click to zoom
3D Models
VNQ5050AK-E - STMicroelectronics - 3D model - Small Outline Packages - VNQ5050AK-E
click to zoom

VNQ5050AK-E Details

  • Manufacturer Part Number:

    VNQ5050AK-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    HSSOP, SOP24,.4,32

  • Pin Count:

    24

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SOURCE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    45 µs

  • Turn-on Time:

    20 µs

  • Width:

    7.5 mm

VNQ5050AK-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The datasheet provides a list of recommended external components, including resistors, capacitors, and inductors. Additionally, STMicroelectronics provides a component selection guide in the application note AN4979, which helps engineers choose the right components based on their specific application requirements.
  • The VNQ5050AK-E has a high power density, and proper thermal management is crucial to ensure reliability. Engineers should follow the thermal management guidelines in the datasheet and application note AN4979, which include recommendations for heat sink design, thermal interface materials, and airflow management.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which covers common issues and their solutions. Engineers can also consult the datasheet and STMicroelectronics' technical support resources for additional guidance.
  • Yes, the VNQ5050AK-E is a high-frequency device, and EMI/EMC considerations are crucial to ensure compliance with regulatory requirements. Engineers should follow the EMI/EMC guidelines in the datasheet and application note AN4979, which include recommendations for PCB layout, shielding, and filtering.
