VNQ5E160AKTR-E - STMicroelectronics

Description: Quad channel high side driver with analog current sense for automotive applications

Download VNQ5E160AKTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

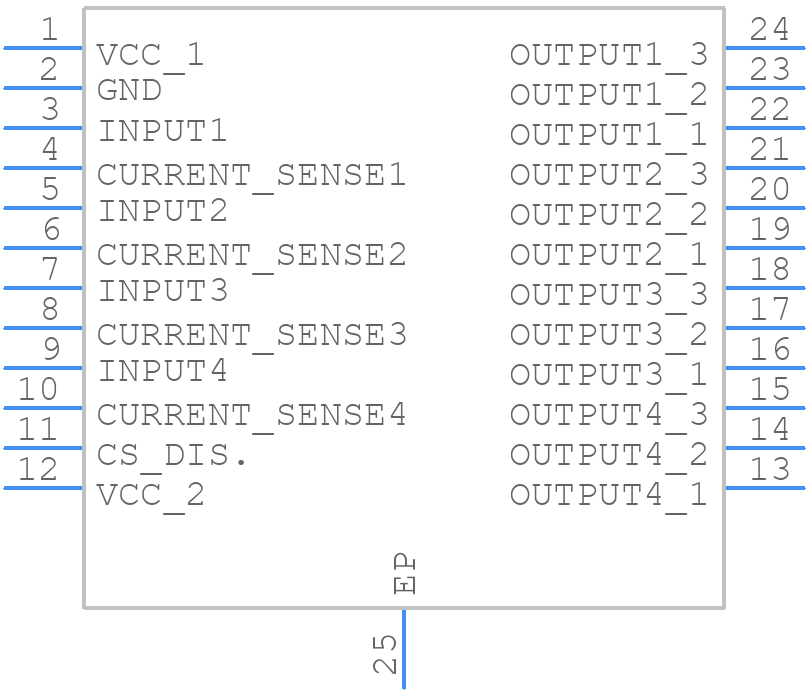

VNQ5E160AKTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

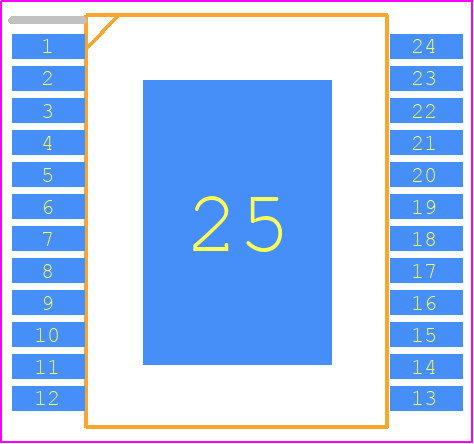

VNQ5E160AKTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24_2022
click to zoom
3D Models
VNQ5E160AKTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24_2022
click to zoom

VNQ5E160AKTR-E Details

  • Manufacturer Part Number:

    VNQ5E160AKTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SSO-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.12

  • Driver Number of Bits:

    4

  • Interface IC Type:

    FULL BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

VNQ5E160AKTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently.
  • Follow STMicroelectronics' guidelines for PCB layout, use a shielded cable for the output, and consider adding a common-mode choke and TVS diodes for EMI filtering.
  • The SOA is not explicitly stated in the datasheet, but it's recommended to operate within the specified voltage and current ratings to avoid overheating and ensure reliability.
  • Yes, the VNQ5E160AKTR-E is AEC-Q100 qualified and suitable for automotive and high-reliability applications, but ensure you follow the recommended operating conditions and design guidelines.
  • Use a thermal imaging camera to identify hotspots, check for proper PCB layout and thermal management, and verify that the device is operated within the specified ratings and conditions.
