VNQ5E160K-E footprint, schematic symbol and 3D model by STMicroelectronics

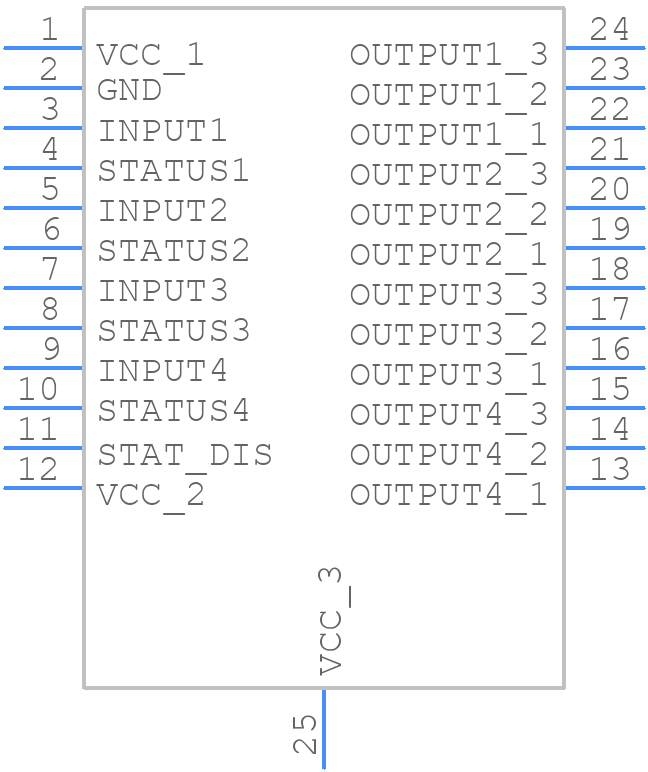

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VNQ5E160K-E
Part Number VNQ5E160K-E
Manufacturer STMicroelectronics
Pin Count 25
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSSO-24 package
Released Date Apr 22, 2026
Last Modified Date Apr 22, 2026 11:17 AM UTC
Pinout / Pin List Click Here (Member Only)

VNQ5E160K-E Details

Manufacturer Part Number:
VNQ5E160K-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SSOP
Package Description:
ROHS COMPLIANT, SSOP-24
Pin Count:
24
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Built-in Protections:
TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
4
Interface IC Type:
FULL BRIDGE BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G24
JESD-609 Code:
e3
Length:
10.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
24
Output Current Flow Direction:
SOURCE
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SOP24,.4,32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.45 mm
Supply Voltage-Max:
28 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
13 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Turn-off Time:
15 µs
Turn-on Time:
15 µs
Width:
7.5 mm

VNQ5E160K-E Frequently Asked Questions (FAQs)

The maximum operating temperature range for VNQ5E160K-E is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within -20°C to 125°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide a heat sink or a thermal pad on the top of the device, and ensure good airflow around the component. The thermal resistance (RthJA) of the device is 2.5°C/W, so a heat sink with a thermal resistance of less than 2.5°C/W is recommended.
The recommended PCB layout for VNQ5E160K-E involves placing the device near the power source, using wide traces for power and ground, and keeping the layout symmetrical to minimize electromagnetic interference (EMI). It's also recommended to use a solid ground plane and to avoid routing high-frequency signals near the device.
Yes, VNQ5E160K-E is suitable for high-reliability applications, such as automotive and industrial systems, due to its high-quality manufacturing process and rigorous testing. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To handle ESD protection for VNQ5E160K-E, it's recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Additionally, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
