VNQ5E250AJ-E - STMicroelectronics

Description: Quad-channel high-side driver with analog current sense for automotive applications , 4V ~ 28V ,3.5A ,-40°C ~ 150°C

Download VNQ5E250AJ-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

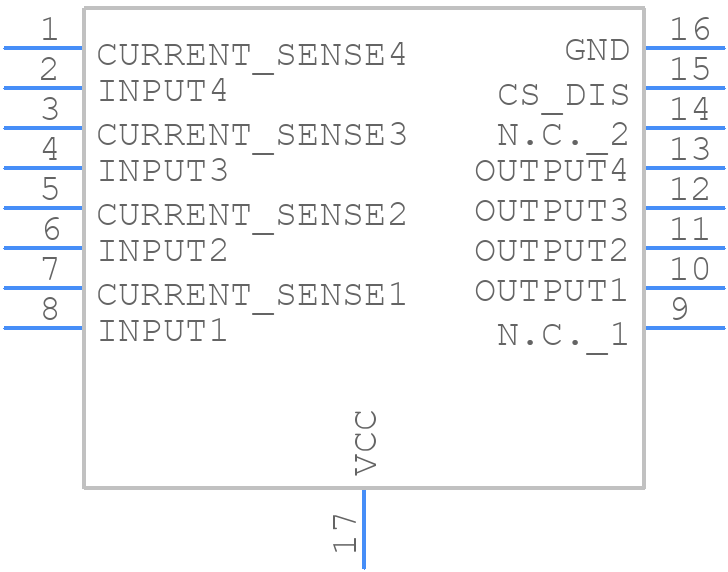

VNQ5E250AJ-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ5E250AJ-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSO-16_2025-1.9
click to zoom
3D Models
VNQ5E250AJ-E - STMicroelectronics - 3D model - Small Outline Packages - SSO-16_2025-1.9
click to zoom

VNQ5E250AJ-E Details

  • Manufacturer Part Number:

    VNQ5E250AJ-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SSO-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Driver Number of Bits:

    4

  • Interface IC Type:

    FULL BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
