VNQ6040CSTR-E footprint, schematic symbol and 3D model by STMicroelectronics

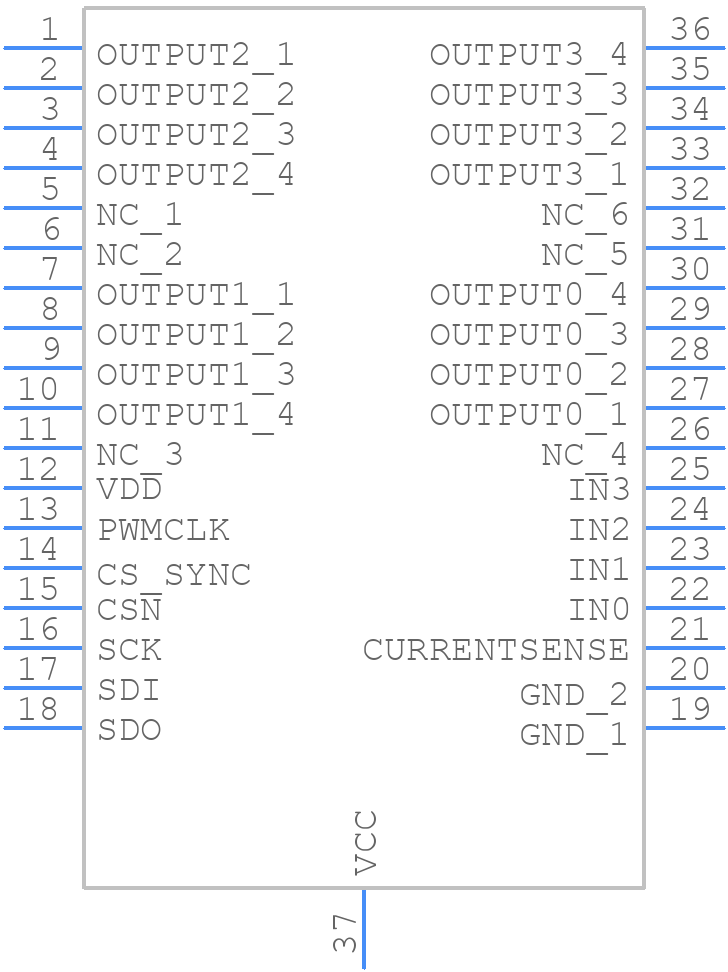

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VNQ6040CSTR-E
Part Number VNQ6040CSTR-E
Manufacturer STMicroelectronics
Pin Count 37
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSSO-36 (exposed pad)
Released Date Apr 23, 2026
Last Modified Date Apr 23, 2026 5:12 AM UTC
Pinout / Pin List Click Here (Member Only)

VNQ6040CSTR-E Details

Manufacturer Part Number:
VNQ6040CSTR-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
3
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VNQ6040CSTR-E Overview

Use the download button to access the VNQ6040CSTR-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VNQ60, or try a keyword search, such as Peripheral Drivers
