VNQ690SP - STMicroelectronics

Description: STMICROELECTRONICS - VNQ690SP - IC, SSR HISIDE QUAD POWERSO10

Download VNQ690SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

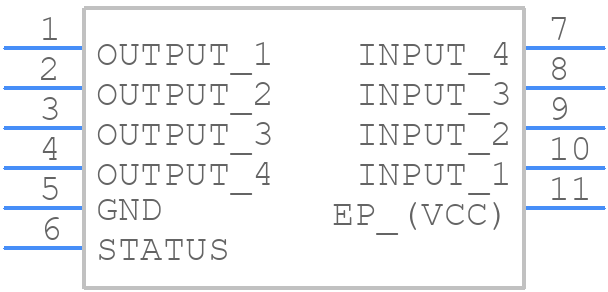

VNQ690SP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ690SP - STMicroelectronics PCB footprint - Other - Other - PowerSO-10™
click to zoom

VNQ690SP Details

  • Manufacturer Part Number:

    VNQ690SP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.012 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VNQ690SP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The datasheet provides a list of recommended external components, including resistors, capacitors, and inductors. Additionally, STMicroelectronics offers a dedicated tool, the VNQ690SP Component Selector, to help engineers select the optimal components for their specific application.
  • The VNQ690SP is rated for operation from -40°C to 150°C, but the maximum operating temperature range depends on the specific application and the thermal management system implemented. Engineers should consult the datasheet and application notes for guidance on thermal design and management.
  • The VNQ690SP has a built-in overcurrent protection feature, which can be enabled by connecting the OCP pin to a suitable resistor and capacitor network. The application note AN4899 provides a detailed example of an overcurrent protection circuit and guidelines for selecting the correct components.
  • The VNQ690SP is designed to operate from 5.5 V to 28 V, but the recommended voltage range depends on the specific application and the desired level of performance. Engineers should consult the datasheet and application notes for guidance on voltage selection and regulation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ690SP Overview

Use the download button to access the VNQ690SP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ69, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
