Part Image

VNQ7004SYTR - STMicroelectronics

Description: Power Switch ICs - Power Distribution LGS VIPOWER

Download VNQ7004SYTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

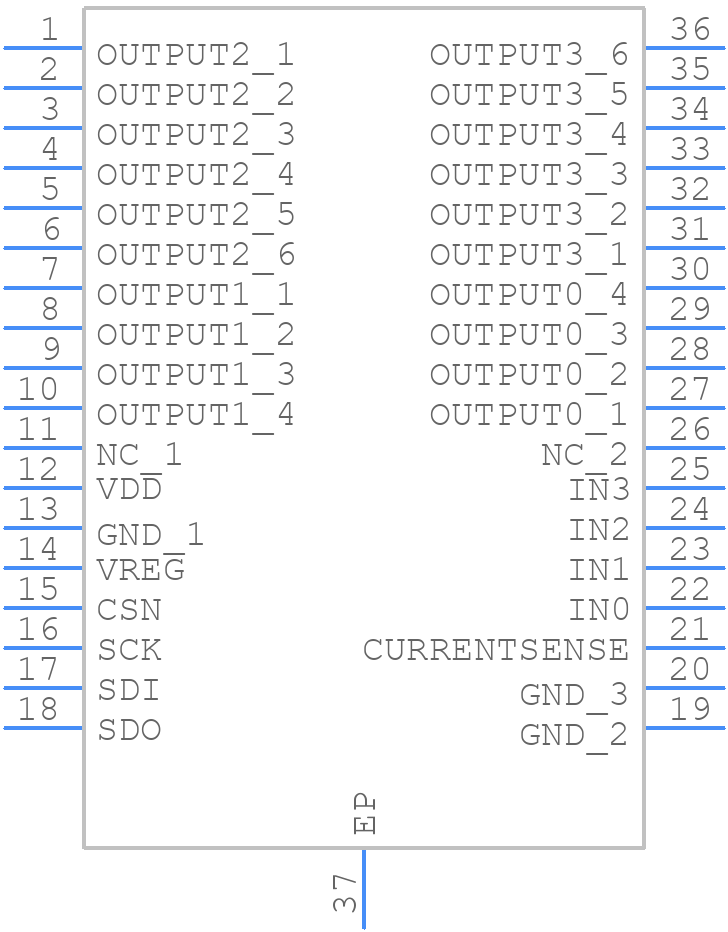

Symbol
VNQ7004SYTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ7004SYTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - power sso 36
click to zoom
3D Models
VNQ7004SYTR - STMicroelectronics - 3D model - Small Outline Packages - power sso 36
click to zoom

VNQ7004SYTR Details

  • Manufacturer Part Number:

    VNQ7004SYTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VNQ7004SYTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Use a heat sink, ensure good airflow, and consider derating the device's current handling capability according to the temperature derating curve in the datasheet.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended, placed as close as possible to the VIN pin to filter out noise and ensure stable operation.
  • Use a TVS diode or a zener diode to clamp overvoltages, and consider adding a fuse or a PTC resettable fuse to protect against overcurrent conditions.
  • Keep the output stage traces short and away from sensitive analog circuits, use a ground plane to shield the output stage, and consider adding a common-mode choke to reduce EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ7004SYTR Overview

Use the download button to access the VNQ7004SYTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ70, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
