VNQ7140AJ-E - STMicroelectronics

Description: IC PWR DRVR N-CHAN 1:1 PWRSSO16

Download VNQ7140AJ-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

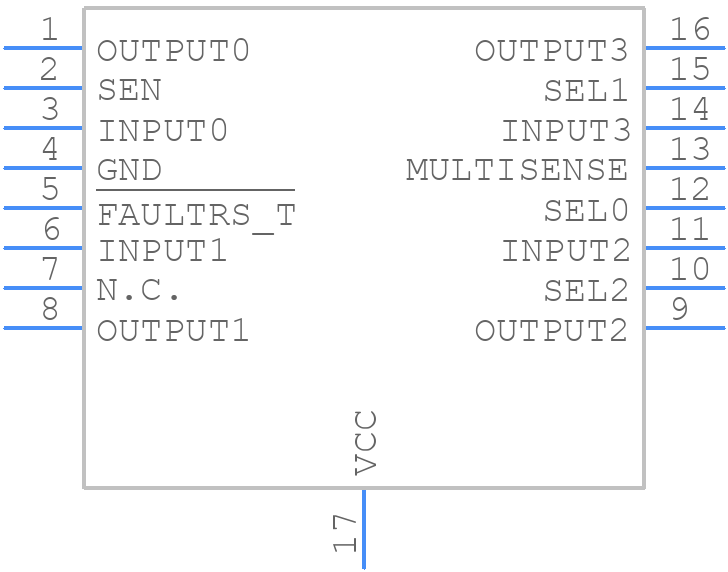

Symbol
VNQ7140AJ-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ7140AJ-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16_2024
click to zoom
3D Models
VNQ7140AJ-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16_2024
click to zoom

VNQ7140AJ-E Details

  • Manufacturer Part Number:

    VNQ7140AJ-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    120 µs

  • Width:

    3.9 mm

VNQ7140AJ-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable, keep the device away from high-frequency sources, and follow proper PCB layout and grounding techniques. Additionally, consider using a common-mode choke and ferrite beads to filter out electromagnetic interference.
  • The recommended power-up sequence is to first apply the supply voltage (VCC) and then the input voltage (VIN). This ensures proper internal biasing and prevents damage to the device.
  • To troubleshoot issues, start by checking the power supply voltage, input voltage, and output current. Verify that the device is properly configured and that the PCB layout meets the recommended guidelines. Use an oscilloscope to monitor the device's behavior and identify any anomalies.
  • The VNQ7140AJ-E has a maximum junction temperature (TJ) of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pad. Monitor the device's temperature and adjust the system design accordingly to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ7140AJ-E Overview

Use the download button to access the VNQ7140AJ-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ71, or try a keyword search, such as Peripheral Drivers
