VNQ810PTR-E - STMicroelectronics

Description: Current Limit SW 4-IN 4-OUT to 7.5A Automotive 28-Pin SO T/R

Download VNQ810PTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

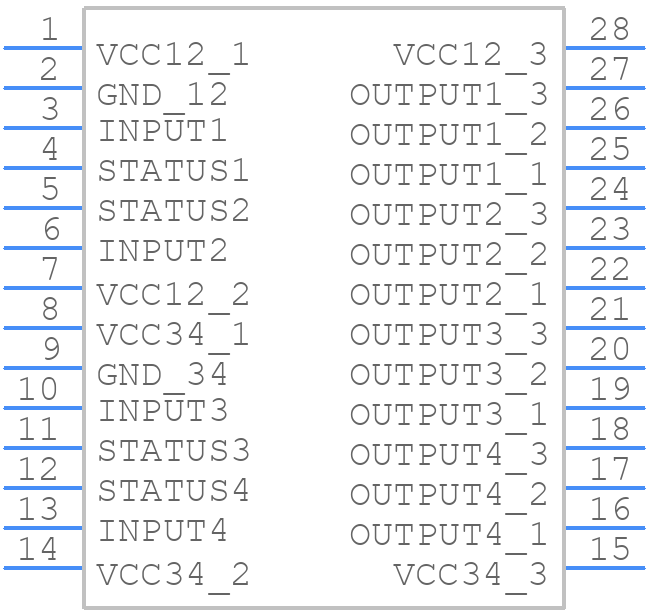

Symbol
VNQ810PTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ810PTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-28_
click to zoom
3D Models
VNQ810PTR-E - STMicroelectronics - 3D model - Small Outline Packages - SO-28_
click to zoom

VNQ810PTR-E Details

  • Manufacturer Part Number:

    VNQ810PTR-E

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

VNQ810PTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Follow STMicroelectronics' guidelines for PCB layout, use a shielded cable for the output stage, and ensure proper grounding and decoupling to minimize electromagnetic interference.
  • The maximum allowed voltage on the input pins is 35V, but it's recommended to keep it below 30V to ensure reliable operation and prevent damage to the device.
  • The VNQ810PTR-E is rated for operation up to 150°C, but it's recommended to derate the device's performance and consider thermal management strategies for high-temperature applications.
  • Use STMicroelectronics' application notes and troubleshooting guides, and consider using a logic analyzer or oscilloscope to debug issues related to the device's operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ810PTR-E Overview

Use the download button to access the VNQ810PTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ81, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
