VNQ860SPTR-E - STMicroelectronics

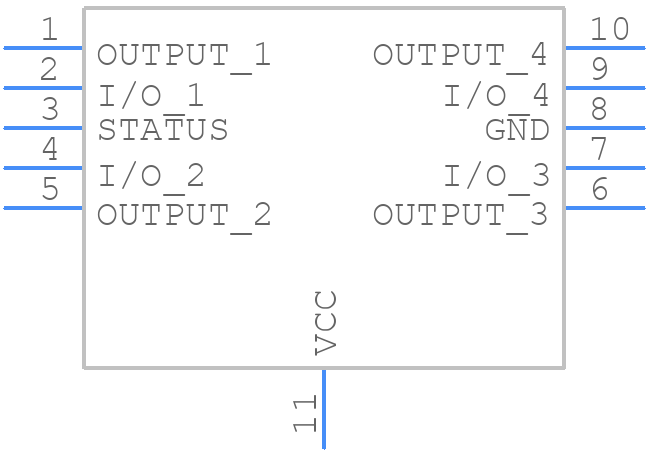

VNQ860SPTR-E Details

• Manufacturer Part Number:

  VNQ860SPTR-E

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  ROHS COMPLIANT, POWER, SOP-10

• Pin Count:

  10

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Built-in Protections:

  TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  4

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G10

• Length:

  9.4 mm

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SOURCE

• Output Current-Max:

  0.25 A

• Output Peak Current Limit-Nom:

  0.7 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP10,.55FL

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.75 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  5.5 V

• Supply Voltage-Nom:

  24 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  40 µs

• Turn-on Time:

  10 µs

• Width:

  7.5 mm
