VNQ9025AJTR - STMicroelectronics

Description: Quad channel high-side driver with current sense analog feedback for automotive applications

Download VNQ9025AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

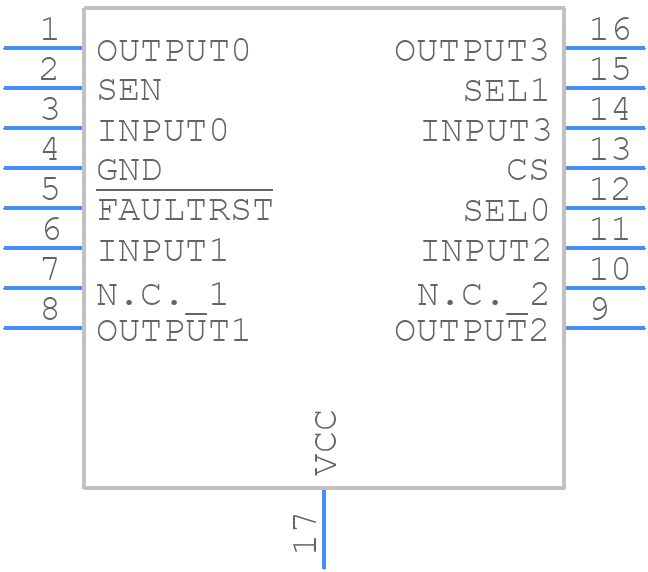

Symbol
VNQ9025AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ9025AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - . PowerSSO-16 mechxxanical data
click to zoom
3D Models
VNQ9025AJTR - STMicroelectronics - 3D model - Small Outline Packages - . PowerSSO-16 mechxxanical data
click to zoom

VNQ9025AJTR Details

  • Manufacturer Part Number:

    VNQ9025AJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VNQ9025AJTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Implement a thermal management strategy, such as heat sinks or fans, to keep the junction temperature below 150°C. Also, ensure proper PCB design and layout to minimize thermal resistance.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 36V to ensure reliable operation and prevent damage to the device.
  • Check the input voltage, ensure proper pin connections, and verify that the enable pin is properly configured. Also, check for any short circuits or damage to the device.
  • Yes, the VNQ9025AJTR is suitable for high-reliability applications, such as automotive and industrial systems, due to its robust design and compliance with relevant industry standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ9025AJTR Overview

Use the download button to access the VNQ9025AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ90, or try a keyword search, such as Peripheral Drivers
