VNS14NV0413TR footprint, schematic symbol and 3D model by STMicroelectronics

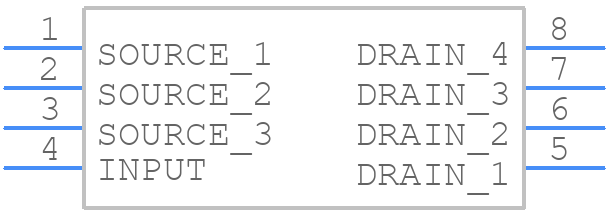

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VNS14NV0413TR
Part Number VNS14NV0413TR
Manufacturer STMicroelectronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SO-8_2026-1.10
Released Date Apr 23, 2026
Last Modified Date Apr 23, 2026 2:05 PM UTC
Pinout / Pin List Click Here (Member Only)

VNS14NV0413TR Details

Manufacturer Part Number:
VNS14NV0413TR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, SO-8
Pin Count:
8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
18 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
245
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Turn-off Time:
25 µs
Turn-on Time:
4.5 µs
Width:
3.9 mm

VNS14NV0413TR Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in their application note AN2675, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input voltage, output voltage, and switching frequency. A general guideline is to use a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 1.5 times the input voltage. However, it's recommended to consult the application note AN2675 and perform simulations to determine the optimal capacitor values for your specific design.
While the datasheet specifies an operating temperature range of -40°C to 150°C, the maximum ambient temperature for reliable operation is typically considered to be around 125°C. Above this temperature, the device's reliability and performance may be compromised.
To ensure EMC, follow the guidelines in the application note AN2675, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a metal shield or a shielded inductor to reduce EMI, and ensure that the device is properly decoupled from the power supply.
The recommended output capacitor value is typically between 10uF to 47uF, with a voltage rating of at least 1.5 times the output voltage. A low-ESR ceramic or film capacitor is recommended to minimize output voltage ripple and ensure stable operation.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VNS14NV0413TR Overview

Use the download button to access the VNS14NV0413TR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VNS14, or try a keyword search, such as Peripheral Drivers
