Please enter a minimum 3 letters or numbers
Technical Content
Part Image

VNS14NV04P-E - STMicroelectronics

Description: "OMNIFET II" fully autoprotected Power MOSFET

Download VNS14NV04P-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

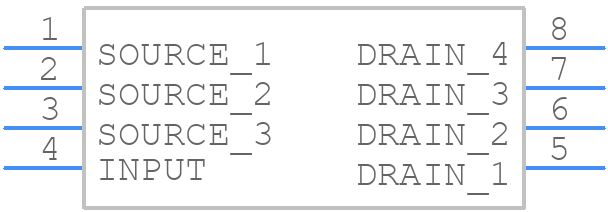

VNS14NV04P-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNS14NV04P-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - -SO-8 mechanical data--
click to zoom

VNS14NV04P-E Details

  • Manufacturer Part Number:

    VNS14NV04P-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    18 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    1.3 µs

  • Turn-on Time:

    0.25 µs

  • Width:

    3.9 mm

VNS14NV04P-E Frequently Asked Questions (FAQs)

  • A good PCB layout for the VNS14NV04P-E involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the loop area of the input and output tracks to reduce electromagnetic interference (EMI).
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range, use a suitable thermal interface material, and ensure good heat dissipation through the PCB design and thermal management.
  • The VNS14NV04P-E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing to prevent damage. Additionally, consider adding external ESD protection devices if the application requires it.
  • To troubleshoot issues with the VNS14NV04P-E, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within the recommended specifications. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
  • Yes, in automotive applications, it's essential to ensure that the VNS14NV04P-E meets the required automotive standards, such as AEC-Q100. Additionally, consider the device's operating temperature range, electromagnetic compatibility (EMC), and reliability in harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNS14NV04P-E Overview

Use the download button to access the VNS14NV04P-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VNS14, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut

Parts related to VNS14NV04P-E

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

VNS14NV04P-E Alternates

Showing results

Image Part Number Model
Part Image VNS14NV04PTR-E STMicroelectronics

Buffer/Inverter Based Peripheral Driver, 18A, PDSO8
