VNS7NV04P-E - STMicroelectronics

Description: OMNIFET II - fully autoprotected Power MOSFET

Download VNS7NV04P-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

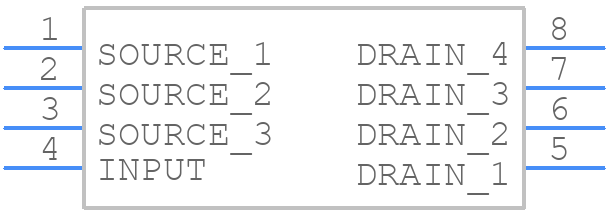

Symbol
VNS7NV04P-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNS7NV04P-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 8 PINS - PLASTIC MICROPACKAGE
click to zoom
3D Models
VNS7NV04P-E - STMicroelectronics - 3D model - Small Outline Packages - 8 PINS - PLASTIC MICROPACKAGE
click to zoom

VNS7NV04P-E Details

  • Manufacturer Part Number:

    VNS7NV04P-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    16 µs

  • Turn-on Time:

    2.3 µs

  • Width:

    3.9 mm

VNS7NV04P-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2675, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • To ensure reliability in high-temperature environments, it is recommended to follow the thermal management guidelines provided in the datasheet, including the use of a heat sink and thermal interface material, and to operate the device within the specified temperature range.
  • The VNS7NV04P-E has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap and ESD-safe work surfaces.
  • Yes, the VNS7NV04P-E is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it is recommended to consult with STMicroelectronics and perform additional testing to ensure the device meets the specific requirements of the target application.
  • STMicroelectronics provides a recommended soldering profile in the package description document, which includes guidelines for peak temperature, soldering time, and cooling rate to ensure reliable assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNS7NV04P-E Overview

Use the download button to access the VNS7NV04P-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNS7N, or try a keyword search, such as Peripheral Drivers
