VO3150A - Vishay

Description: Logic Output Optocouplers 0.5A Current Out IGBT/MOSFET Drvr

Download VO3150A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

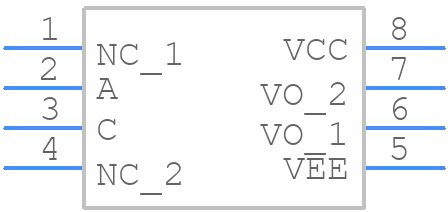

Symbol
VO3150A - Vishay - PCB symbol
click to zoom
PCB Footprints
VO3150A - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8_1
click to zoom
3D Models
VO3150A - Vishay - 3D model - Dual-In-Line Packages - DIP-8_1
click to zoom

VO3150A Details

  • Manufacturer Part Number:

    VO3150A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-XDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.77 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Supply Voltage-Max:

    32 V

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.4 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    7.62 mm

VO3150A Frequently Asked Questions (FAQs)

  • A good PCB layout for VO3150A involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the optocoupler and the PCB's ground plane to reduce electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper derating guidelines, provide adequate heat sinking, and consider using a thermally conductive interface material between the optocoupler and the PCB.
  • The maximum allowable voltage for the VO3150A's input LED is 1.4 V, exceeding which can lead to reduced lifespan or even damage to the device.
  • While VO3150A is suitable for high-frequency applications, its bandwidth is limited to around 10 kHz. For higher frequencies, consider using a faster optocoupler like the VO617A or VO618A.
  • To choose the correct current-limiting resistor, calculate the resistor value based on the input voltage, desired LED current, and the optocoupler's forward voltage drop (typically around 1.2 V).
