CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the module can be connected to a heat sink or a thermal interface material to improve heat dissipation.
To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C). Implement proper thermal management, and ensure the module is not exposed to moisture, vibration, or physical stress. Regularly inspect the module for signs of wear or damage.
The VOF-10B-S12 module is designed to meet CISPR 22 Class B emissions standards. To minimize EMI and RFI, use a metal enclosure, keep the module away from antennas and other EMI-sensitive components, and use proper shielding and grounding techniques.
Yes, the VOF-10B-S12 module can be used in a redundant or parallel configuration to achieve higher power output. However, it's essential to ensure proper synchronization and current sharing between the modules to prevent damage or instability.
CUI recommends using input and output filters to minimize noise and ripple. A minimum of 10uF input capacitance and 10uF output capacitance is recommended. Additionally, consider using inductors or ferrite beads to further reduce noise and EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VOF-10B-S12 Overview

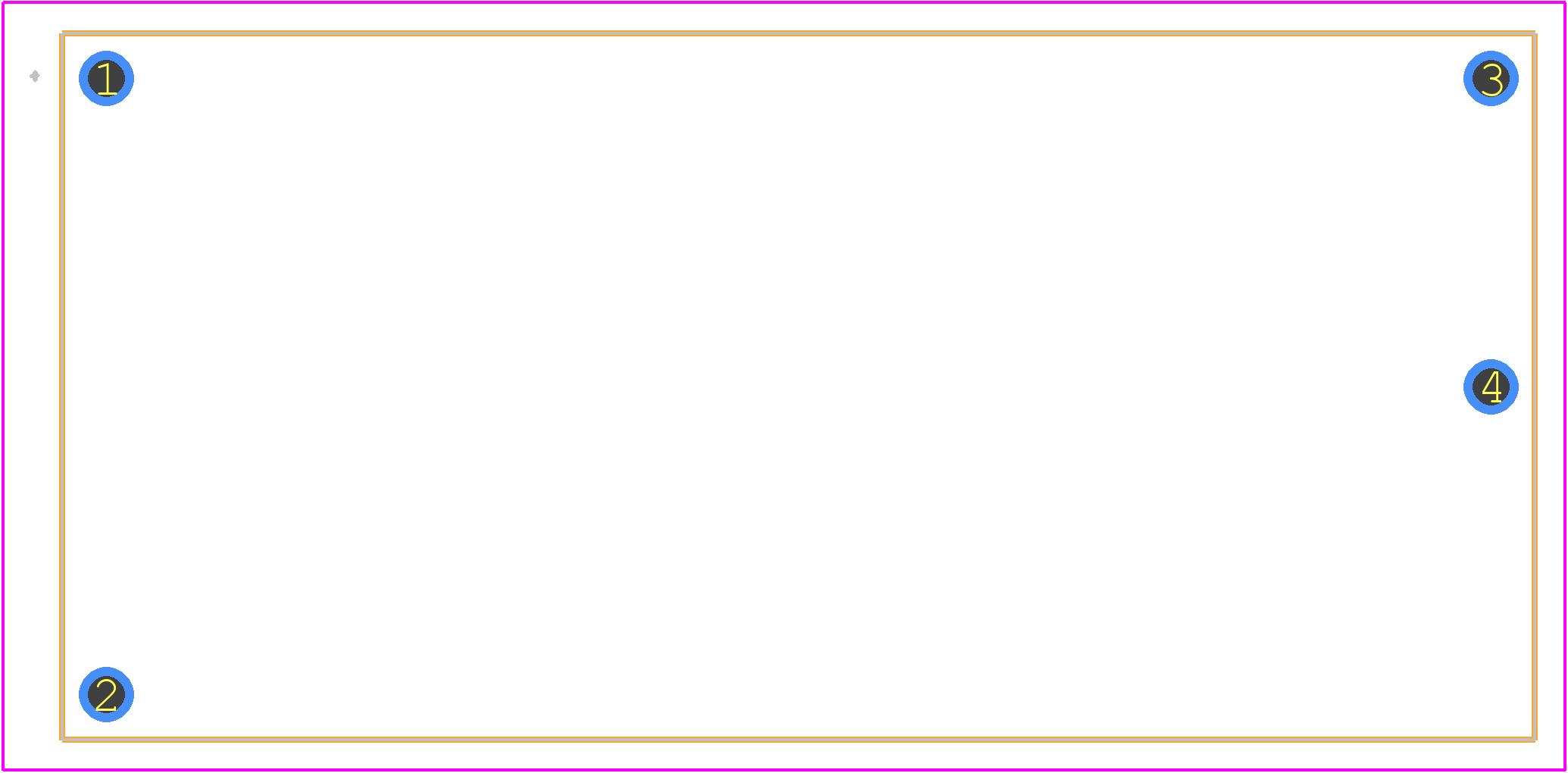

Use the download button to access the VOF-10B-S12 schematic symbol, PCB footprint, and 3D model.
