VOW3120 - Vishay

Description: Optically Isolated Gate Drivers WDIP-8 IGBT MOSFET DRIVER 2.5A -E3

Download VOW3120 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this VOW3120 model

Email notifications will be applied after download.

Send part feedback

Symbol

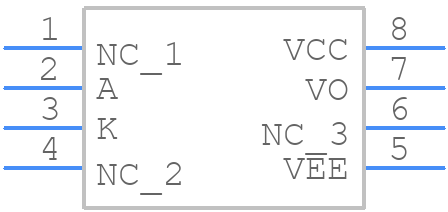

VOW3120 - Vishay - PCB symbol

PCB Footprints

VOW3120 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8, Widebody, 400 mil

3D Models

VOW3120 - Vishay - 3D model - Dual-In-Line Packages - DIP-8, Widebody, 400 mil

Datasheet Download Datasheet
Stock & Prices Price & Stock for VOW3120
Part Number VOW3120
Manufacturer Vishay
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP-8, Widebody, 400 mil
Released Date Apr 14, 2024
Last Modified Date Apr 14, 2024 7:46 AM UTC
Pinout / Pin List Click Here (Member Only)

VOW3120 Details

Manufacturer Part Number:
VOW3120
Manufacturer:
Vishay Intertechnologies
