VP0265540000G - Amphenol

Description: 2 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole

Download VP0265540000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VP0265540000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

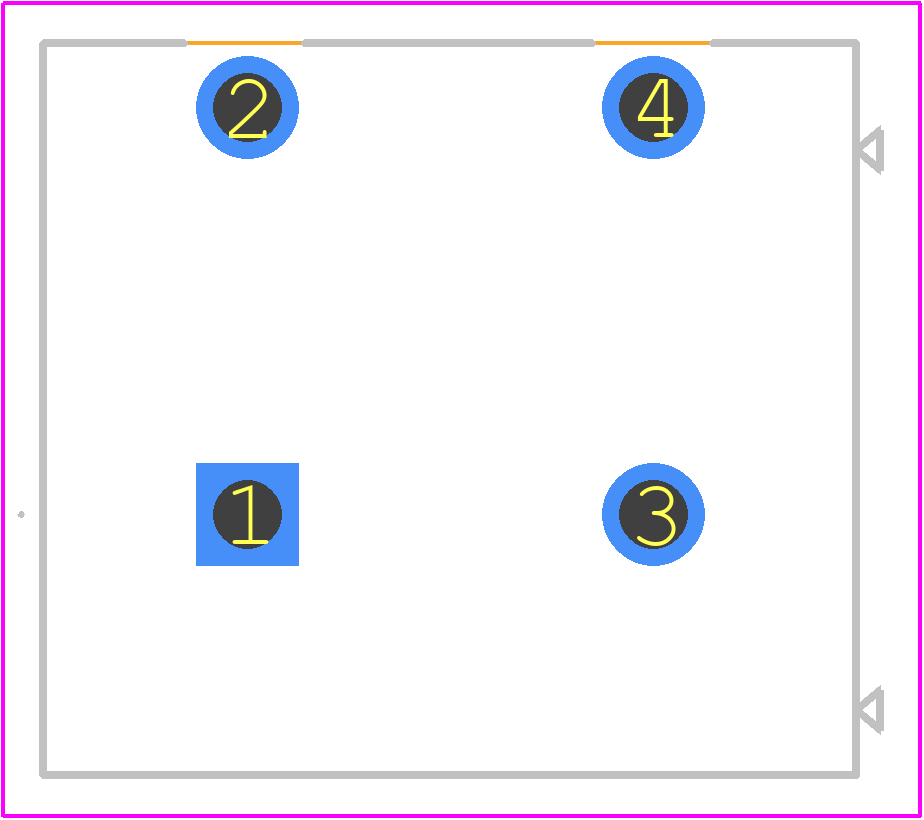

VP0265540000G - Amphenol PCB footprint - Other - Other - VP0265540000G-3
click to zoom
3D Models
VP0265540000G - Amphenol - 3D model - Other - VP0265540000G-3
click to zoom

VP0265540000G Details

  • Manufacturer Part Number:

    VP0265540000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    6.74

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    SCREW CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    65 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    13.3 mm2

  • Wire Gauge:

    6 AWG

VP0265540000G Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw threads is 10-12 in-lbs (1.1-1.4 Nm) to ensure proper mating and prevent damage to the connector.
  • Yes, the VP0265540000G is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-55302, which includes sinusoidal vibration testing at 10-2000 Hz, 20 G peak acceleration.
  • Yes, the VP0265540000G is designed to operate in harsh environments. It has a temperature range of -55°C to 125°C and meets the humidity requirements of MIL-DTL-55302, which includes exposure to 95% relative humidity at 40°C for 240 hours.
  • The VP0265540000G has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • The VP0265540000G is designed to be compatible with other manufacturers' mating connectors that meet the MIL-DTL-55302 specification. However, it's recommended to verify compatibility with the specific mating connector before use.
