Description:Power Transformers Power Transformer, PC Mount, 2.5 V A, 5/10VDC (Nominal Secondary) Output, 115/230VAC Input, 10VDC CT at 0.25A Secondary in Series, 5VDC at 0.5A Secondary in Parallel, 50/60Hz Frequency
Triad Magnetics recommends a symmetrical PCB layout with the transformer centered on the board, and the primary and secondary windings on opposite sides of the board to minimize electromagnetic interference (EMI).
Proper thermal management can be achieved by providing adequate airflow around the transformer, using a heat sink if necessary, and ensuring that the ambient temperature is within the recommended operating range of -40°C to 125°C.
Triad Magnetics recommends that the voltage imbalance between the primary and secondary windings should not exceed 10% to ensure reliable operation and prevent premature failure.
Yes, the VPP10-250 is designed to meet the requirements of high-reliability and safety-critical applications, such as medical devices, aerospace, and industrial control systems. However, it is essential to follow Triad Magnetics' recommended design and testing guidelines to ensure compliance with relevant standards and regulations.
Triad Magnetics recommends following a systematic troubleshooting approach, including checking the input voltage, output voltage, and current, as well as inspecting the transformer and surrounding components for signs of physical damage or overheating. Consult the datasheet and application notes for more detailed guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VPP10-250 Overview

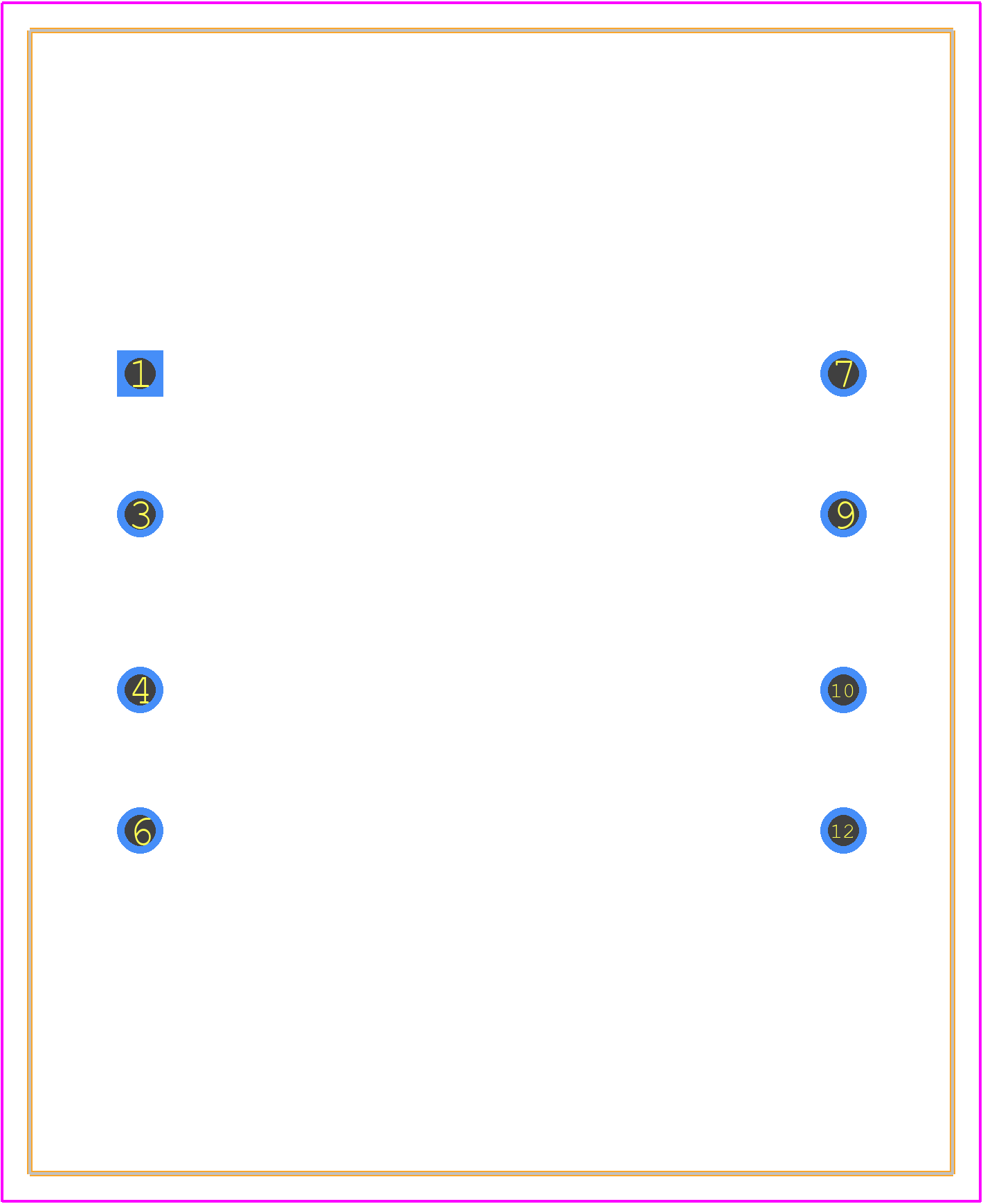

Use the download button to access the VPP10-250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VPP10,
or try a keyword search, such as Power/Mains Transformers
