Part Image

VPP12-400 - Triad Magnetics

Description: Power Transformers POWER XFMR 12.6Vct@0.400A UL/CSA/VDE PCB MOUNT/VPP12-400

Download VPP12-400 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

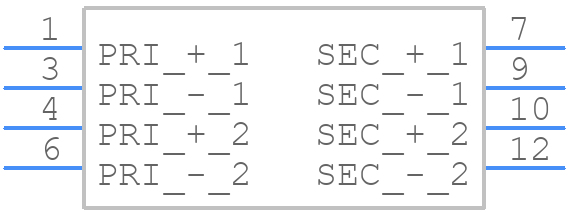

VPP12-400 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

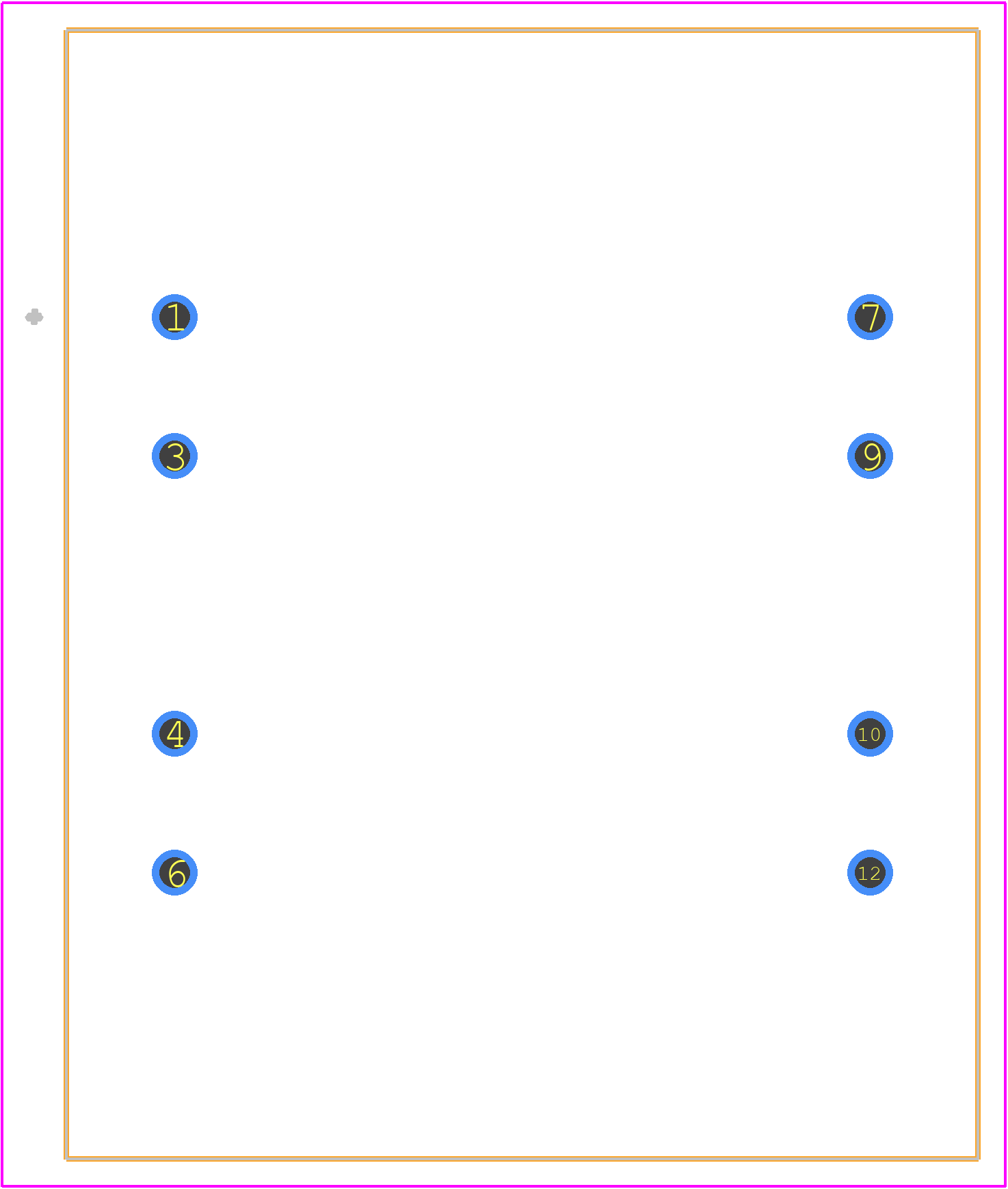

VPP12-400 - Triad Magnetics PCB footprint - Other - Other - VPP12-400-2
click to zoom
3D Models
VPP12-400 - Triad Magnetics - 3D model - Other - VPP12-400-2
click to zoom

VPP12-400 Details

  • Manufacturer Part Number:

    VPP12-400

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6.55

  • Application:

    POWER

  • Approvals:

    CSA; IEC; TUV; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    34.93 mm

  • Input Voltage-Max:

    230 V

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.8 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    5 VA

  • Width:

    33.34 mm

VPP12-400 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the VPP12-400 is -20°C to 85°C, with a maximum storage temperature of 125°C.
  • Yes, the VPP12-400 is designed to withstand high-vibration environments and meets the IEC 60068-2-6 vibration test standard.
  • The VPP12-400 is rated for operation up to 10,000 feet (3,048 meters) above sea level.
  • Yes, the VPP12-400 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The recommended PCB layout and spacing for the VPP12-400 can be found in the Triad Magnetics application note AN-114, which provides guidelines for optimal PCB design and layout.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VPP12-400 Overview

Use the download button to access the VPP12-400 schematic symbol, PCB footprint, and 3D model.
