Description:Power Transformers Power Transformer, PC Mount, 20 V A, 10/20VDC (Nominal Secondary) Output, 115/230VAC Input, 20VDC CT at 1A Secondary in Series, 10VDC at 2A Secondary in Parallel, 50/60Hz Frequency
A good PCB layout for the VPP20-1000 should ensure that the transformer is placed away from high-current carrying traces, and that the primary and secondary windings are separated to minimize electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal management practices, such as providing adequate airflow, using a heat sink if necessary, and avoiding overheating due to excessive current or voltage.
When working with the VPP20-1000, it's essential to follow proper safety precautions, such as wearing protective gear, ensuring the device is properly grounded, and avoiding electrical shock hazards. Additionally, follow proper soldering and desoldering techniques to avoid damaging the device.
To optimize the transformer's performance, consider factors such as the input voltage, output voltage, and frequency of operation. Additionally, consider the specific requirements of your application, such as power density, efficiency, and thermal management. Consult with a qualified engineer or Triad Magnetics' technical support for customized guidance.
Potential failure modes of the VPP20-1000 include overheating, electrical overstress, and physical damage. To mitigate these risks, ensure proper thermal management, follow recommended operating conditions, and handle the device with care during assembly and testing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VPP20-1000 Overview

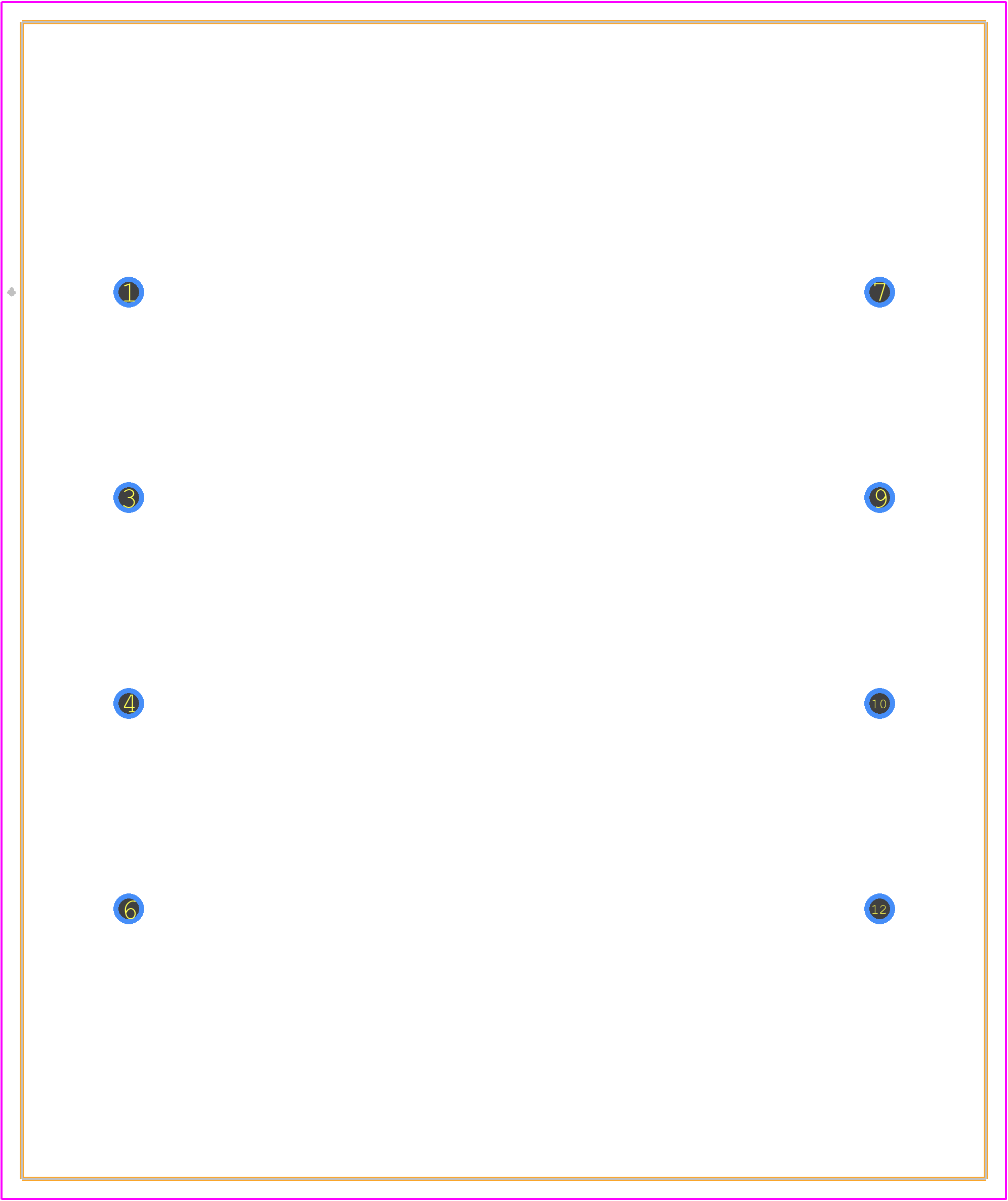

Use the download button to access the VPP20-1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VPP20,
or try a keyword search, such as Power/Mains Transformers
