VPP20-2800 - Triad Magnetics

Description: Power Transformers POWER XFMR 20.0Vct@2.80A UL/CSA/VDE PCB MOUNT/VPP20-2800

Download VPP20-2800 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

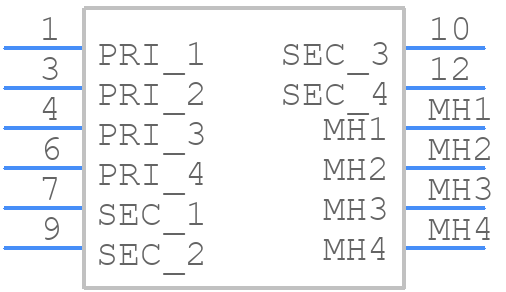

Symbol
VPP20-2800 - Triad Magnetics - PCB symbol
click to zoom

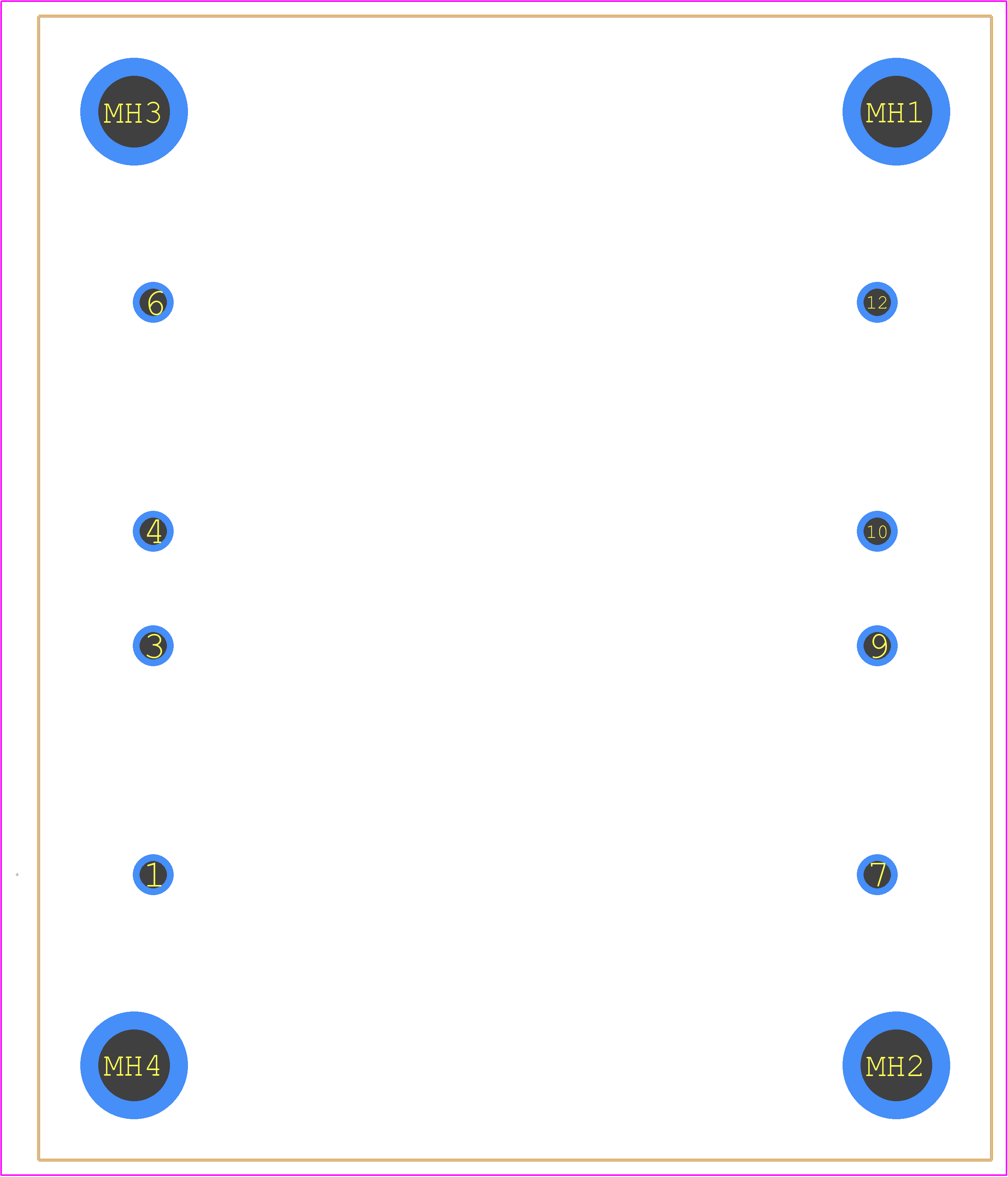

PCB Footprints
VPP20-2800 - Triad Magnetics PCB footprint - Other - Other - VPP20-2800-2
click to zoom
3D Models
VPP20-2800 - Triad Magnetics - 3D model - Other - VPP20-2800-2
click to zoom

VPP20-2800 Details

  • Manufacturer Part Number:

    VPP20-2800

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.65

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.98

  • Application:

    POWER

  • Approvals:

    CSA; IEC; TUV; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    46.04 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    76.2 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    5.6 A

  • Output Voltage 1:

    10 V

  • Output Voltage 2:

    10 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    56 VA

  • Width:

    63.5 mm

VPP20-2800 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the VPP20-2800 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Proper thermal management can be achieved by providing adequate airflow around the transformer, using a heat sink or thermal interface material, and ensuring that the ambient temperature is within the recommended range.
  • The maximum allowable voltage imbalance between the primary and secondary windings is 10% to ensure reliable operation and prevent overheating.
  • Yes, the VPP20-2800 can be used in a push-pull configuration, but it requires careful design and layout to ensure proper operation and minimize electromagnetic interference.
  • The recommended creepage distance for the VPP20-2800 is 4 mm to ensure safe and reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VPP20-2800 Overview

Use the download button to access the VPP20-2800 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VPP20, or try a keyword search, such as Power/Mains Transformers
