Description:Power Transformers Power Transformer, PC Mount, 10 V A, 12/24VDC (Nominal Secondary) Output, 115/230VAC Input, 24VDC CT at 0.42A Secondary in Series, 12VDC at 0.84A Secondary in Parallel, 50/60Hz Frequency
A good PCB layout for the VPP24-420 should ensure that the input and output windings are separated to minimize electromagnetic interference (EMI). The transformer should be placed away from other components that may generate noise. A ground plane can also be used to reduce noise and improve performance.
To ensure reliable operation over a wide temperature range, it's essential to follow proper derating guidelines for the VPP24-420. This includes reducing the maximum power rating at higher temperatures. Additionally, ensuring good airflow and using a thermally conductive material for heat dissipation can help maintain reliable operation.
When using the VPP24-420, safety considerations include ensuring that the transformer is used within its specified voltage and current ratings. Proper insulation and creepage distances should be maintained to prevent electrical shock. Additionally, the transformer should be protected from overvoltage and overcurrent conditions.
To optimize the VPP24-420's performance for a specific application, consider the input and output voltage requirements, as well as the power rating needed. The transformer's turns ratio can be adjusted to achieve the desired voltage transformation. Additionally, the transformer's core material and winding configuration can be optimized for specific frequency ranges or power levels.
Potential failure modes of the VPP24-420 include overheating, electrical overstress, and physical damage. These can be mitigated by ensuring proper thermal management, using overvoltage and overcurrent protection, and handling the transformer with care during assembly and installation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VPP24-420 Overview

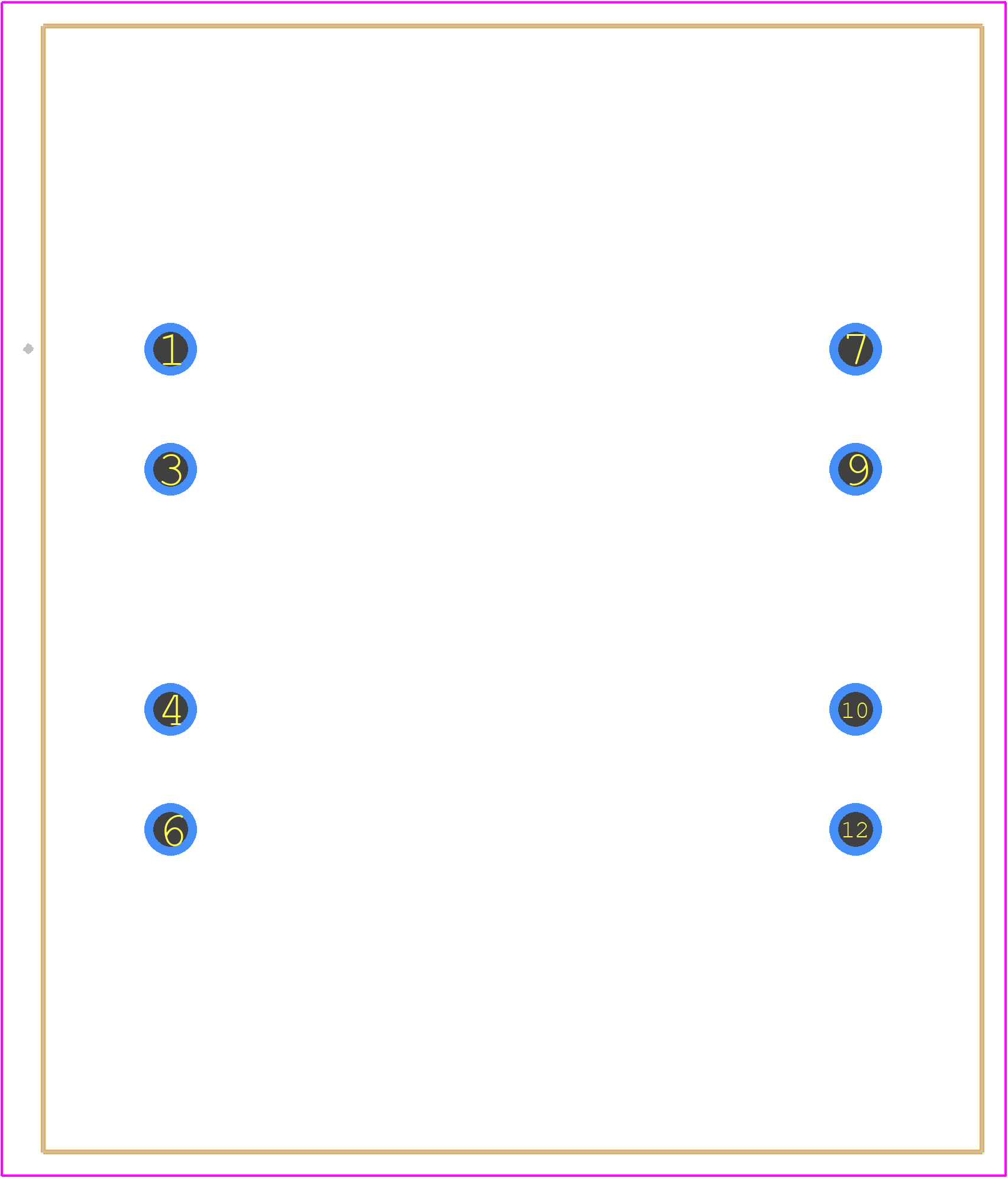

Use the download button to access the VPP24-420 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VPP24,
or try a keyword search, such as Power/Mains Transformers
