VPP24-830 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, 20 V A, 12/24VDC (Nominal Secondary) Output, 115/230VAC Input, 24VDC CT at 0.83A Secondary in Series, 12VDC at 1.66A Secondary in Parallel, 50/60Hz Frequency

Download VPP24-830 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VPP24-830 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

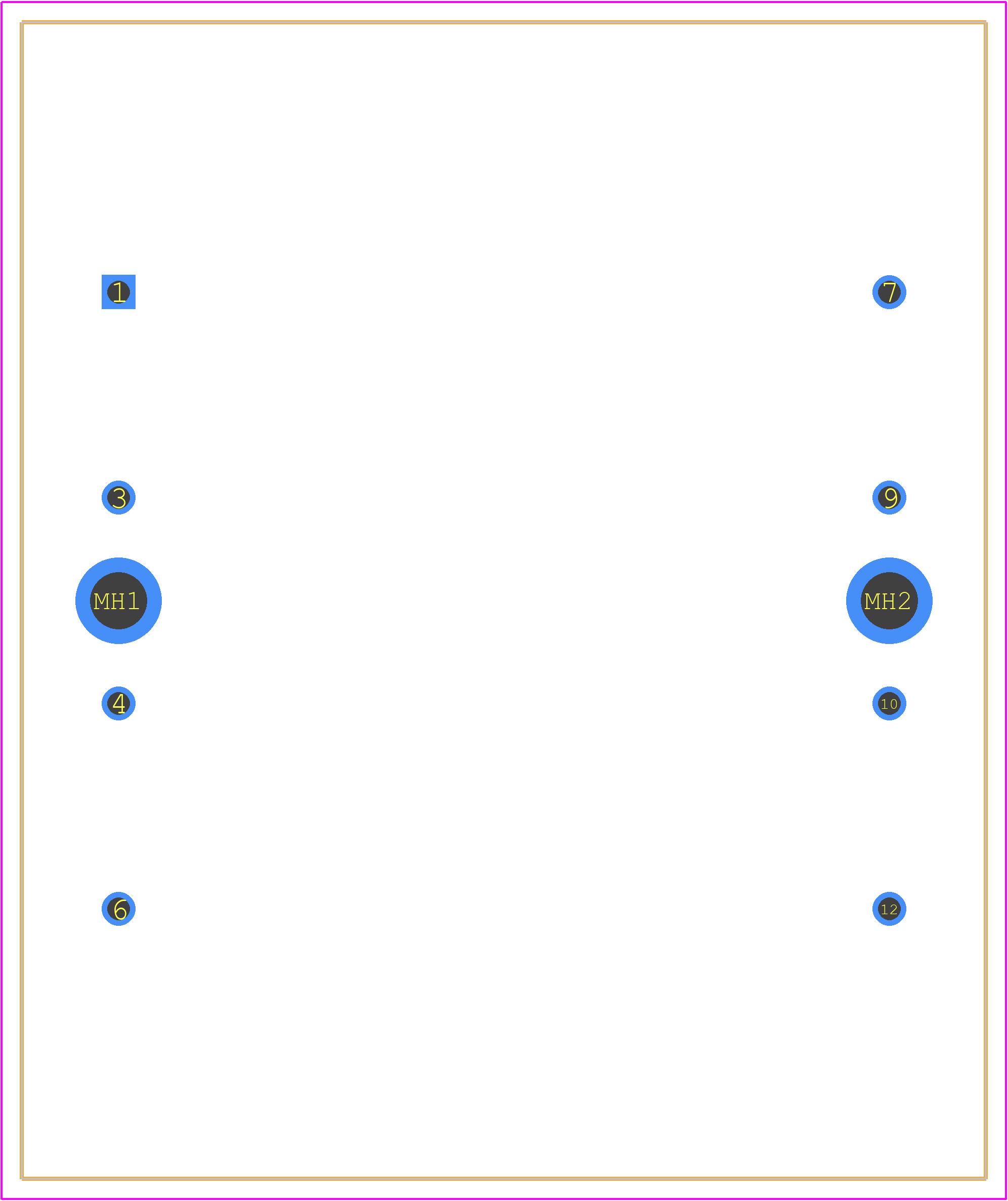

VPP24-830 - Triad Magnetics PCB footprint - Other - Other - VPP24-830-2
click to zoom
3D Models
VPP24-830 - Triad Magnetics - 3D model - Other - VPP24-830-2
click to zoom

VPP24-830 Details

  • Manufacturer Part Number:

    VPP24-830

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6.02

  • Application:

    POWER

  • Approvals:

    CSA; IEC; TUV; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    41.28 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    57.15 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1.66 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    20 VA

  • Width:

    47.63 mm

VPP24-830 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the VPP24-830 is -40°C to 85°C.
  • Yes, the VPP24-830 is designed for high-voltage applications and can withstand up to 3000Vrms between primary and secondary windings.
  • The maximum power rating of the VPP24-830 is 24W, with a maximum current rating of 1A.
  • Yes, the VPP24-830 is designed for use in switching power supplies and can operate at frequencies up to 500kHz.
  • The VPP24-830 uses a Class B (130°C) insulation system, which provides excellent electrical insulation and thermal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VPP24-830 Overview

Use the download button to access the VPP24-830 schematic symbol, PCB footprint, and 3D model.
