VPP28-1060 Frequently Asked Questions (FAQs)

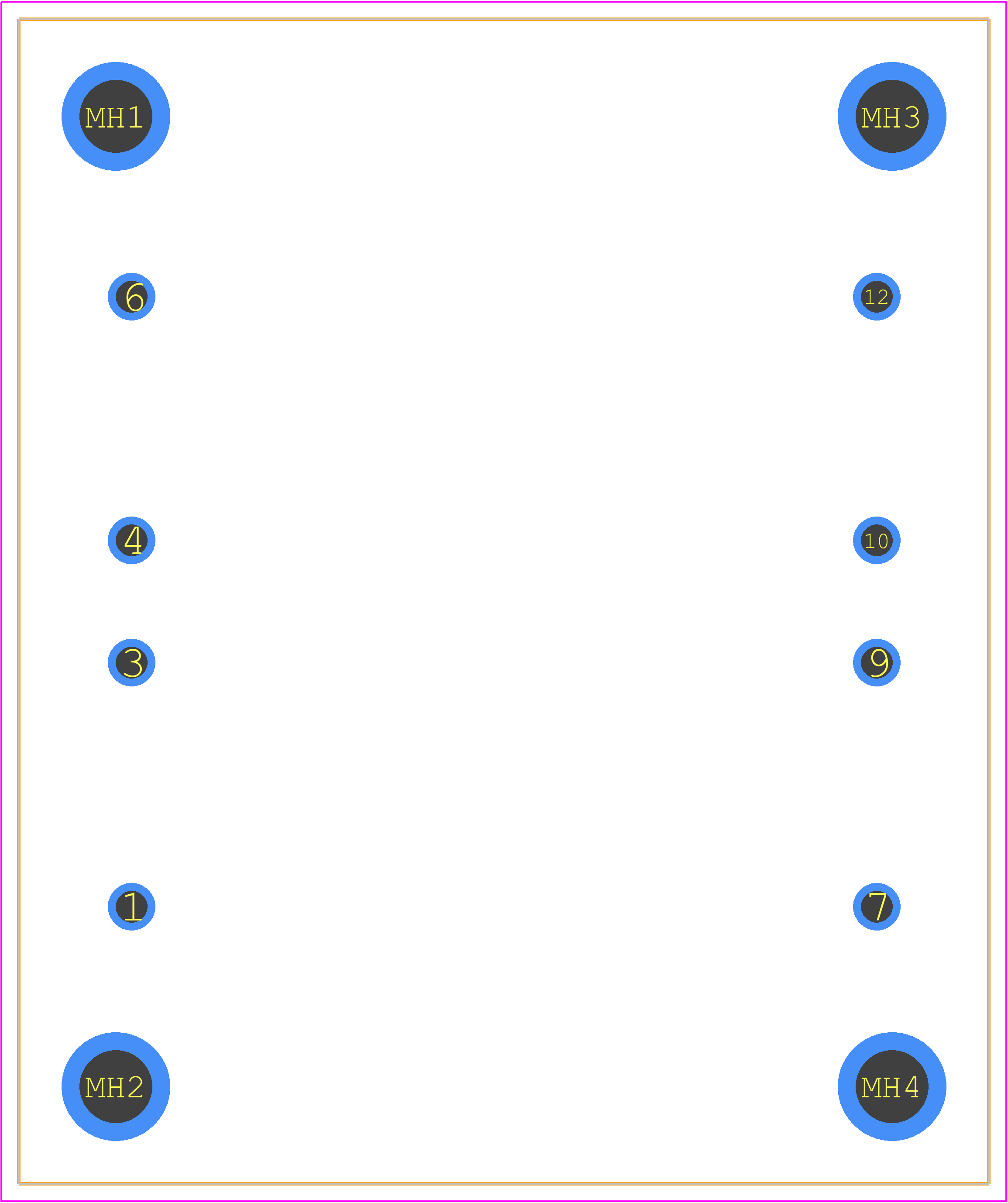

• What is the recommended PCB layout for optimal performance?
  Triad Magnetics recommends a symmetrical PCB layout with the transformer centered on the board, and the primary and secondary windings on opposite sides of the board to minimize electromagnetic interference (EMI).
• How do I ensure proper thermal management for the VPP28-1060?
  Proper thermal management can be achieved by providing adequate airflow around the transformer, using a heat sink or thermal interface material, and ensuring that the ambient temperature is within the recommended operating range.
• What is the maximum allowable voltage imbalance between the primary and secondary windings?
  Triad Magnetics recommends that the voltage imbalance between the primary and secondary windings should not exceed 10% to ensure reliable operation and prevent premature failure.
• Can I use the VPP28-1060 in a high-reliability or safety-critical application?
  Yes, the VPP28-1060 is designed to meet the requirements of high-reliability and safety-critical applications, but it is recommended to consult with Triad Magnetics' application engineers to ensure that the specific requirements of the application are met.
• What is the recommended creepage and clearance distance for the VPP28-1060?
  Triad Magnetics recommends a minimum creepage distance of 4.5 mm and a minimum clearance distance of 3.2 mm between the primary and secondary windings to ensure electrical isolation and prevent arcing.
