Description:Power Transformers Power Transformer, PC Mount, 5 V A, 18/36VDC (Nominal Secondary) Output, 115/230VAC Input, 36VDC CT at 0.14A Secondary in Series, 18VDC at 0.28A Secondary in Parallel, 50/60Hz Frequency
Triad Magnetics recommends a symmetrical PCB layout with the transformer centered on the board, and the primary and secondary windings on opposite sides of the board to minimize electromagnetic interference (EMI).
Proper thermal management can be achieved by providing adequate airflow around the transformer, using a heat sink if necessary, and ensuring that the ambient temperature is within the recommended operating range of -40°C to 125°C.
Triad Magnetics recommends that the voltage imbalance between the primary and secondary windings should not exceed 10% to ensure reliable operation and prevent premature failure.
Yes, the VPP36-140 is designed to meet the requirements of high-reliability and safety-critical applications, such as medical devices, aerospace, and industrial control systems. However, it is essential to follow Triad Magnetics' recommended design and testing guidelines to ensure compliance with relevant standards and regulations.
Common issues with the VPP36-140 can be troubleshooted by checking the input voltage, output load, and ambient temperature. Ensure that the transformer is properly installed, and the PCB layout is correct. Also, check for any signs of physical damage or wear. If the issue persists, contact Triad Magnetics' technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VPP36-140 Overview

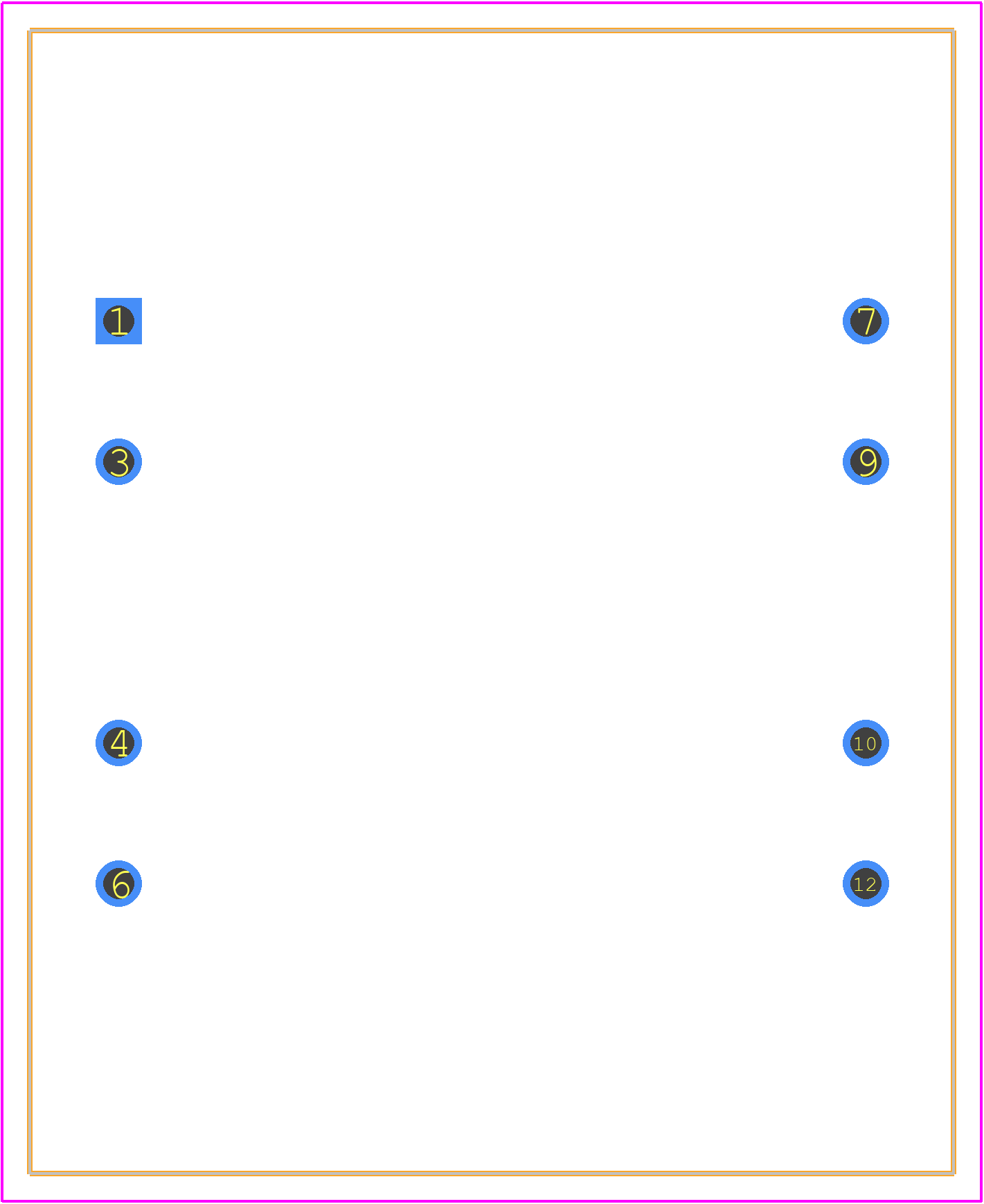

Use the download button to access the VPP36-140 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VPP36,
or try a keyword search, such as Power/Mains Transformers
