VPP36-560 - Triad Magnetics

Description: Power Transformers POWER XFMR 36.0Vct@0.560A UL/CSA/VDE PCB MOUNT/VPP36-560

Download VPP36-560 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

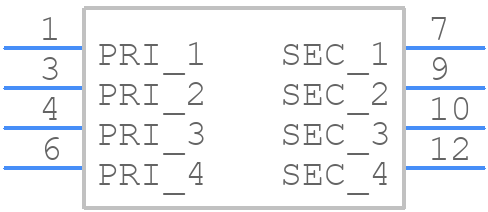

Symbol
VPP36-560 - Triad Magnetics - PCB symbol
click to zoom

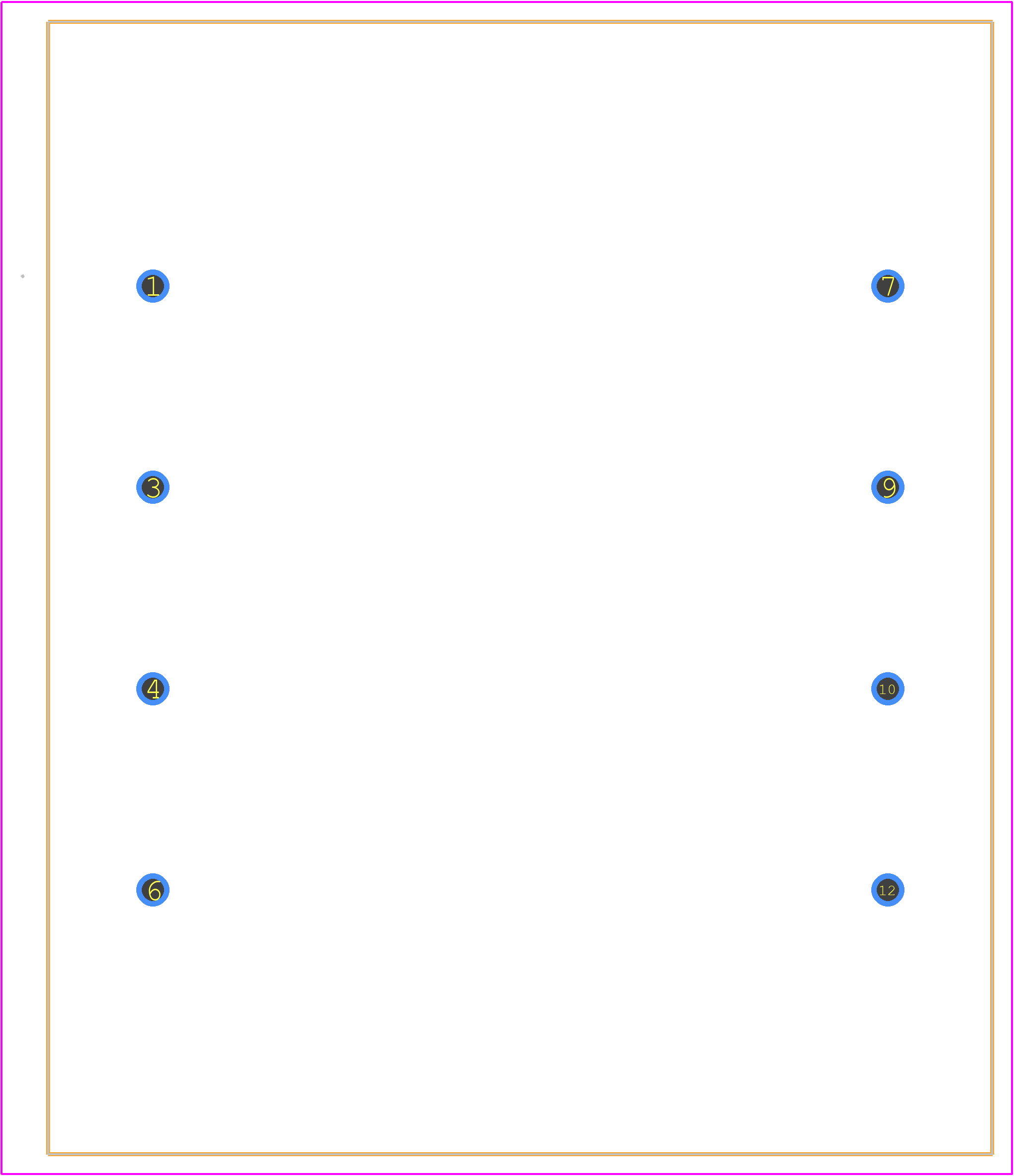

PCB Footprints
VPP36-560 - Triad Magnetics PCB footprint - Other - Other - VPP36-560-1
click to zoom
3D Models
VPP36-560 - Triad Magnetics - 3D model - Other - VPP36-560-1
click to zoom

VPP36-560 Details

  • Manufacturer Part Number:

    VPP36-560

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.98

  • Application:

    POWER

  • Approvals:

    CSA; IEC; TUV; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    41.28 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    57.15 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1.12 A

  • Output Voltage 1:

    18 V

  • Output Voltage 2:

    18 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    20 VA

  • Width:

    47.63 mm

VPP36-560 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the VPP36-560 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink or thermal interface material, and keeping the transformer away from other heat-generating components.
  • The maximum allowable voltage imbalance is ±10% to ensure reliable operation and prevent overheating.
  • Yes, the VPP36-560 can be used in a push-pull configuration, but it requires careful design and layout to ensure proper operation and minimize electromagnetic interference.
  • The recommended creepage distance for the VPP36-560 is 4 mm to ensure safe and reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VPP36-560 Overview

Use the download button to access the VPP36-560 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VPP36, or try a keyword search, such as Power/Mains Transformers
